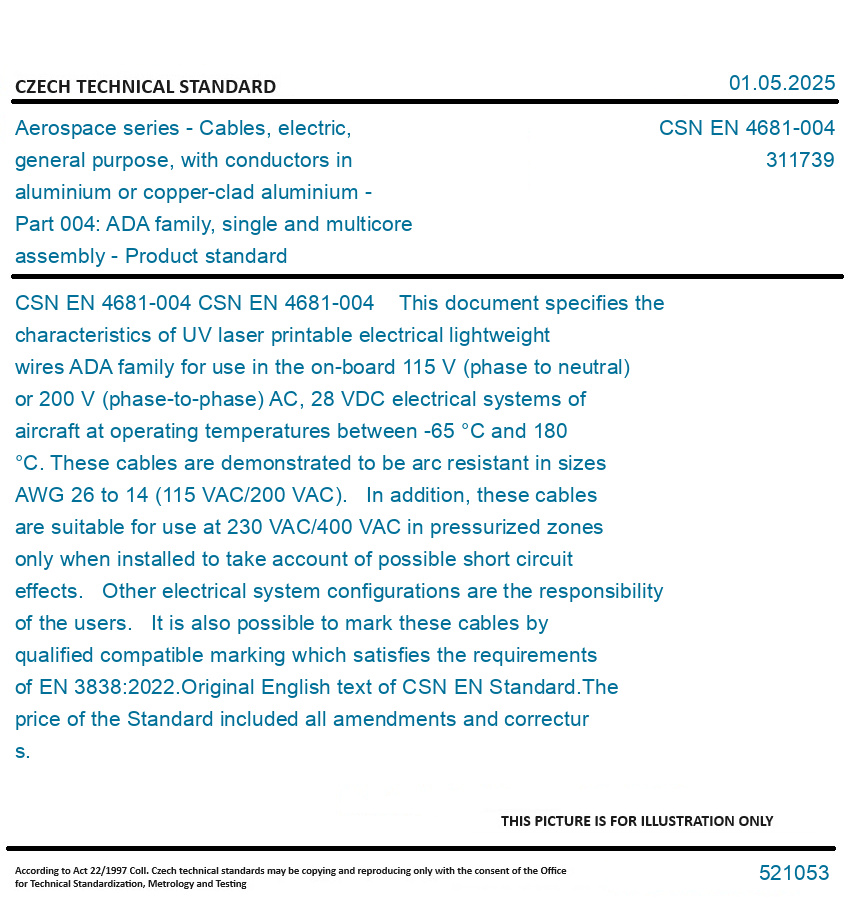

Aerospace series - Cables, electric, general purpose, with conductors in aluminium or copper-clad aluminium - Part 004: ADA family, single and multicore assembly - Product standard
Format
Availability
Price and currency
English Hardcopy
In stock
52.00 EUR
FREE Shipping
Number of Standard:
CSN EN 4681-004
Category:
311739
Pages:
20
Released:
01.05.2025
Catalog number:
521053
DESCRIPTION
CSN EN 4681-004
CSN EN 4681-004 This document specifies the characteristics of UV laser printable electrical lightweight wires ADA family for use in the on-board 115 V (phase to neutral) or 200 V (phase-to-phase) AC, 28 VDC electrical systems of aircraft at operating temperatures between -65 °C and 180 °C. These cables are demonstrated to be arc resistant in sizes AWG 26 to 14 (115 VAC/200 VAC). In addition, these cables are suitable for use at 230 VAC/400 VAC in pressurized zones only when installed to take account of possible short circuit effects. Other electrical system configurations are the responsibility of the users. It is also possible to mark these cables by qualified compatible marking which satisfies the requirements of EN 3838:2022. Original English text of CSN EN Standard. The price of the Standard included all amendments and correcturs.
