FREE SHIPPINGReleased: 2009

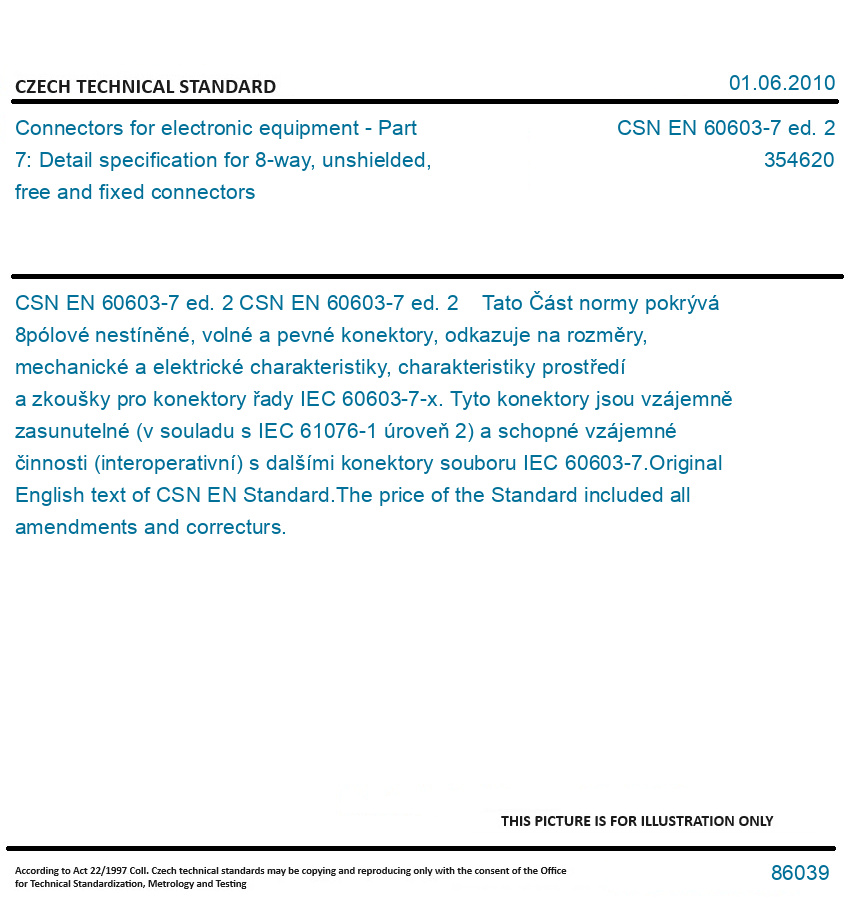

CSN EN 60603-7 ed. 2 - Connectors for electronic equipment - Part 7: Detail specification for 8-way, unshielded, free and fixed connectors

CSN EN 60603-7 ed. 2

Connectors for electronic equipment - Part 7: Detail specification for 8-way, unshielded, free and fixed connectors

Format
Availability
Price and currency
English Hardcopy
In stock
87.06 USD
Category:354620
Released:2009
Number of Standard:CSN EN 60603-7 ed. 2
DESCRIPTION

EN 60603-7 ed. 2


EN 60603-7 ed. 2 Connectors for electronic equipment - Part 7: Detail specification for 8-way, unshielded, free and fixed connectors - IEC 60603-7:2008 covers 8-way unshielded free and fixed connectors and is intended to specify the common dimensions, mechanical, electrical and environmental characteristics and tests for the family of IEC 60603-7-x connectors. These connectors are intermateable and interoperable with other IEC 60603-7 series connectors. This new edition includes the following significant technical changes with respect to the previous edition: updated drawings and test schedules on the basis of IEC 60603-7-4; corrected figure illustrating a connector de-rating curve.

Original English text of CSN EN Standard.
The price of the Standard included all amendments and correcturs.
