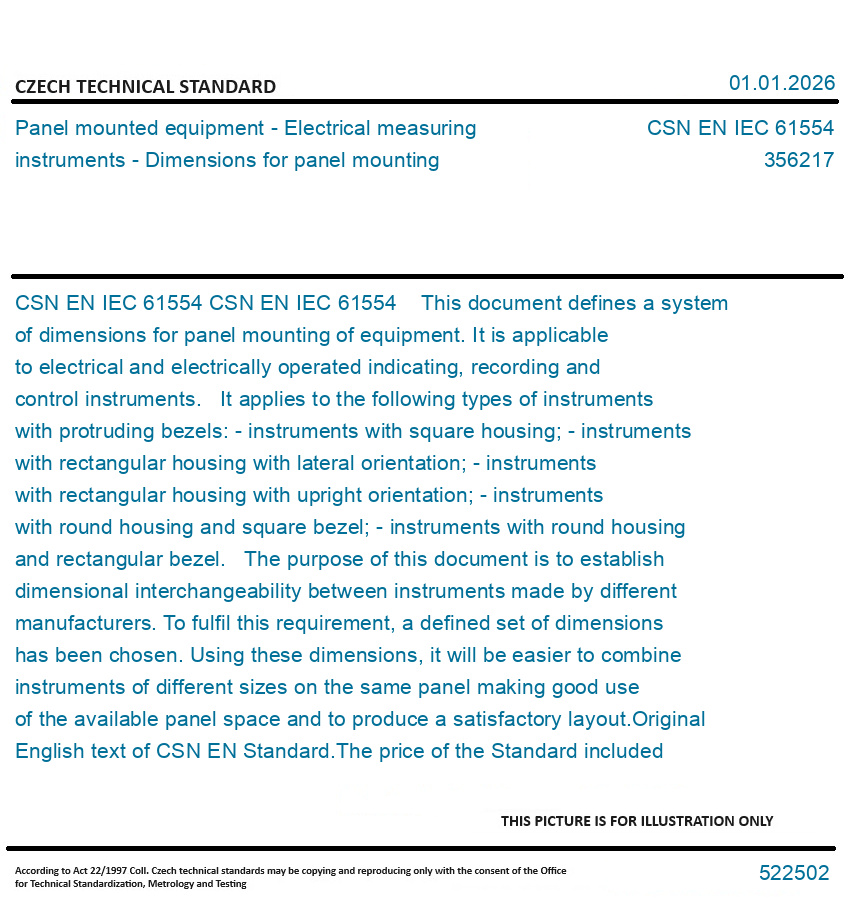

CSN EN IEC 61554

CSN EN IEC 61554 This document defines a system of dimensions for panel mounting of equipment. It is applicable to electrical and electrically operated indicating, recording and control instruments. It applies to the following types of instruments with protruding bezels: - instruments with square housing; - instruments with rectangular housing with lateral orientation; - instruments with rectangular housing with upright orientation; - instruments with round housing and square bezel; - instruments with round housing and rectangular bezel. The purpose of this document is to establish dimensional interchangeability between instruments made by different manufacturers. To fulfil this requirement, a defined set of dimensions has been chosen. Using these dimensions, it will be easier to combine instruments of different sizes on the same panel making good use of the available panel space and to produce a satisfactory layout.
Original English text of CSN EN Standard.
The price of the Standard included all amendments and correcturs.
