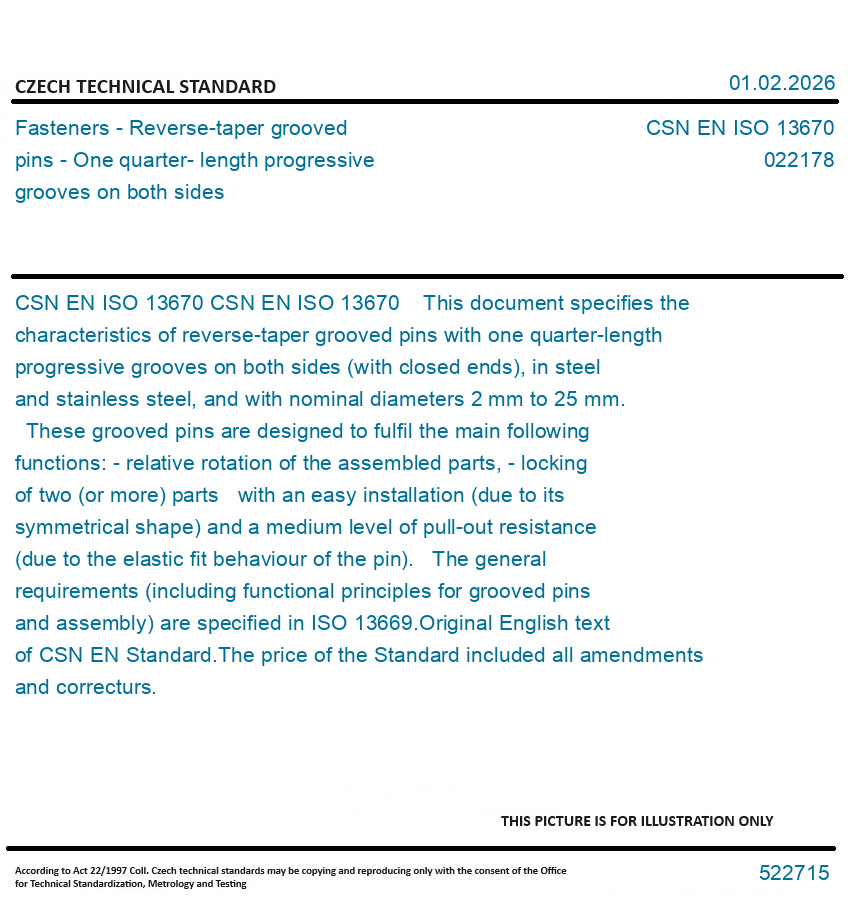

CSN EN ISO 13670 - Fasteners - Reverse-taper grooved pins - One quarter- length progressive grooves on both sides

CSN EN ISO 13670

Fasteners - Reverse-taper grooved pins - One quarter- length progressive grooves on both sides

Format
Availability
Price and currency
English Hardcopy
In stock
52.00 EUR
FREE Shipping
Number of Standard:CSN EN ISO 13670
Category:022178
Pages:20
Released:01.02.2026
Catalog number:522715
DESCRIPTION

CSN EN ISO 13670

CSN EN ISO 13670 This document specifies the characteristics of reverse-taper grooved pins with one quarter-length progressive grooves on both sides (with closed ends), in steel and stainless steel, and with nominal diameters 2 mm to 25 mm. These grooved pins are designed to fulfil the main following functions: - relative rotation of the assembled parts, - locking of two (or more) parts with an easy installation (due to its symmetrical shape) and a medium level of pull-out resistance (due to the elastic fit behaviour of the pin). The general requirements (including functional principles for grooved pins and assembly) are specified in ISO 13669.
Original English text of CSN EN Standard.
The price of the Standard included all amendments and correcturs.
