Released: 01.04.2019

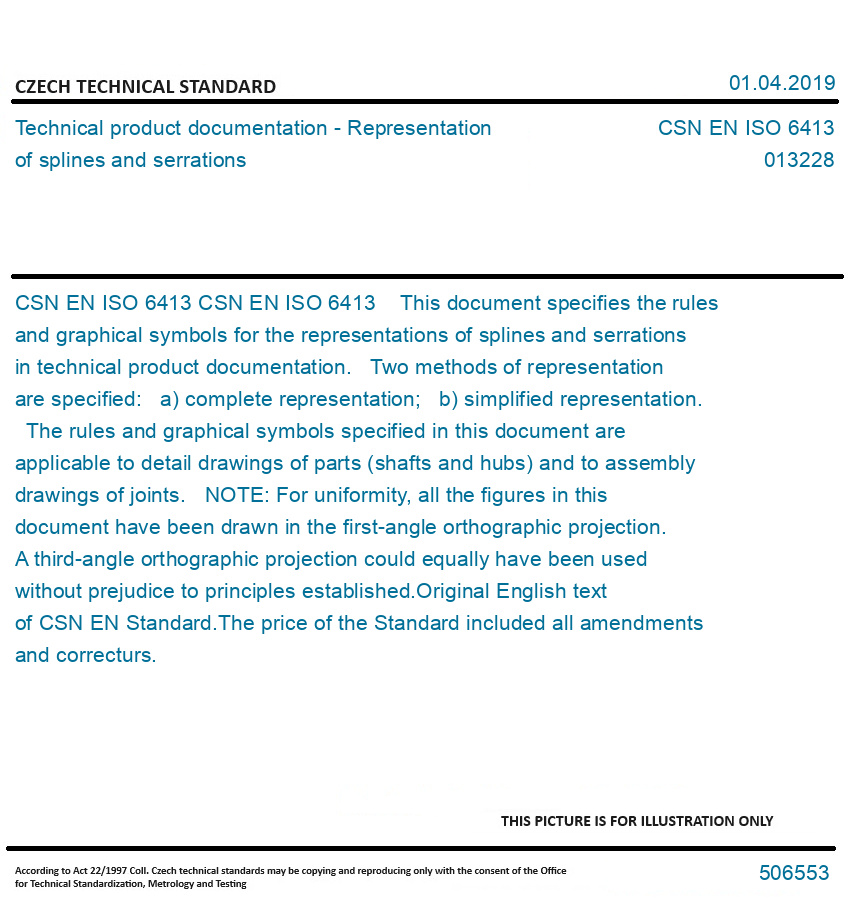

CSN EN ISO 6413 - Technical product documentation - Representation of splines and serrations

CSN EN ISO 6413

Technical product documentation - Representation of splines and serrations

CURRENCY
67.78 USD
FREE Shipping
Number of Standard:CSN EN ISO 6413
Category:013228
Pages:24
Released:01.04.2019
Catalog number:506553
DESCRIPTION

CSN EN ISO 6413

CSN EN ISO 6413 This document specifies the rules and graphical symbols for the representations of splines and serrations in technical product documentation. Two methods of representation are specified: a) complete representation; b) simplified representation. The rules and graphical symbols specified in this document are applicable to detail drawings of parts (shafts and hubs) and to assembly drawings of joints. NOTE: For uniformity, all the figures in this document have been drawn in the first-angle orthographic projection. A third-angle orthographic projection could equally have been used without prejudice to principles established.
Original English text of CSN EN Standard.
The price of the Standard included all amendments and correcturs.
