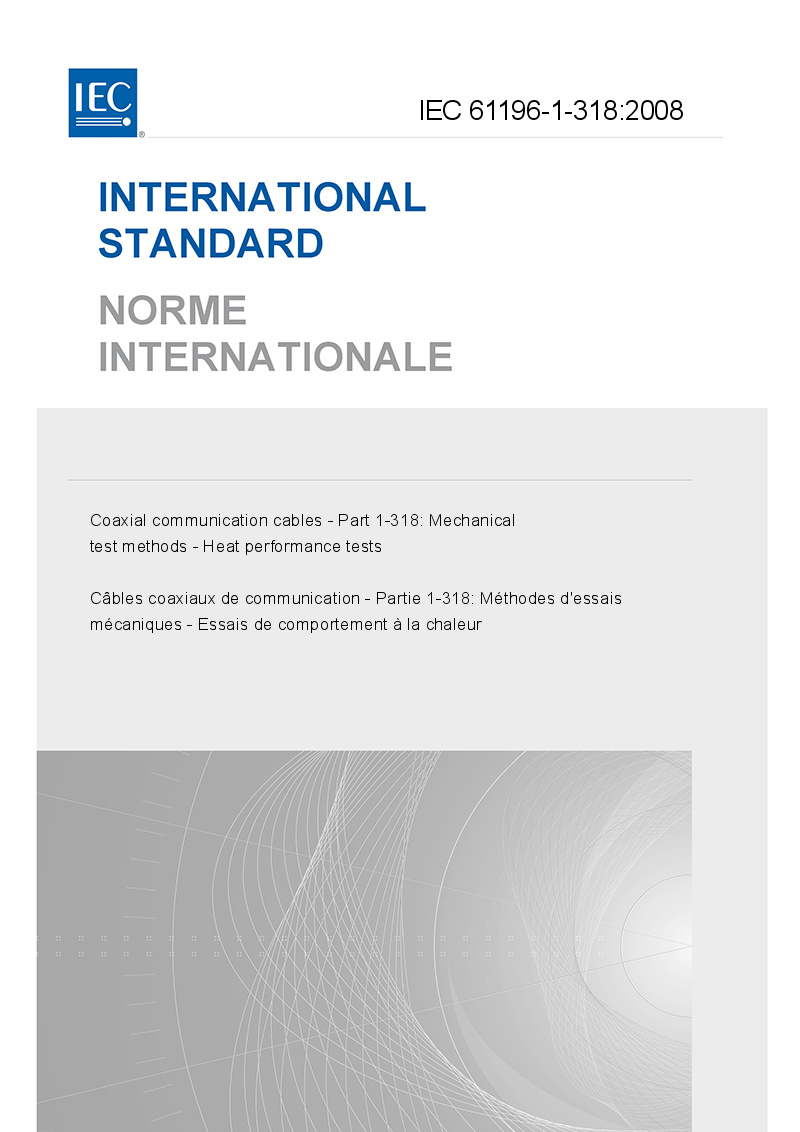

IEC 61196-1-318:2008
Coaxial communication cables - Part 1-318: Mechanical test methods - Heat performance tests
Câbles coaxiaux de communication - Partie 1-318: Méthodes d'essais mécaniques - Essais de comportement à la chaleur
| Standard number: | IEC 61196-1-318:2008 |
| Released: | 2008-02-12 |
| Edition: | 1 |
| ICS: | 33.120.10 |
| Pages (English/French - Bilingual): | 17 |
| ISBN (English/French - Bilingual): | 2831895820 |
IEC 61196-1-318:2008
Applies to coaxial communication cables. It specifies several test methods for determining:
- heat flow resistance of dielectric (the resistance of the dielectric to the mechanical distortion induced by radial stress imposed by the inner conductor at high temperatures);
- resistance to heat exposure (formerly "heat shock resistance": the resistance of the dielectric or the sheath to high temperatures);
- heat behaviour of semi-rigid cables (the ability of the cable construction of semi-rigid cables to withstand the expansion of the dielectric at high temperature);
- dimensional stability (the displacement of the cable elements with respect to each other in order to demonstrate the suitability of a cable for use with connectors).
