>ISO Standards>ISO 3511-4:1985-Industrial process measurement control functions and instrumentation — Symbolic representation-Part 4: Basic symbols for process computer, interface, and shared display/control functions
Not available online - contact us!
immediate downloadReleased: 1985

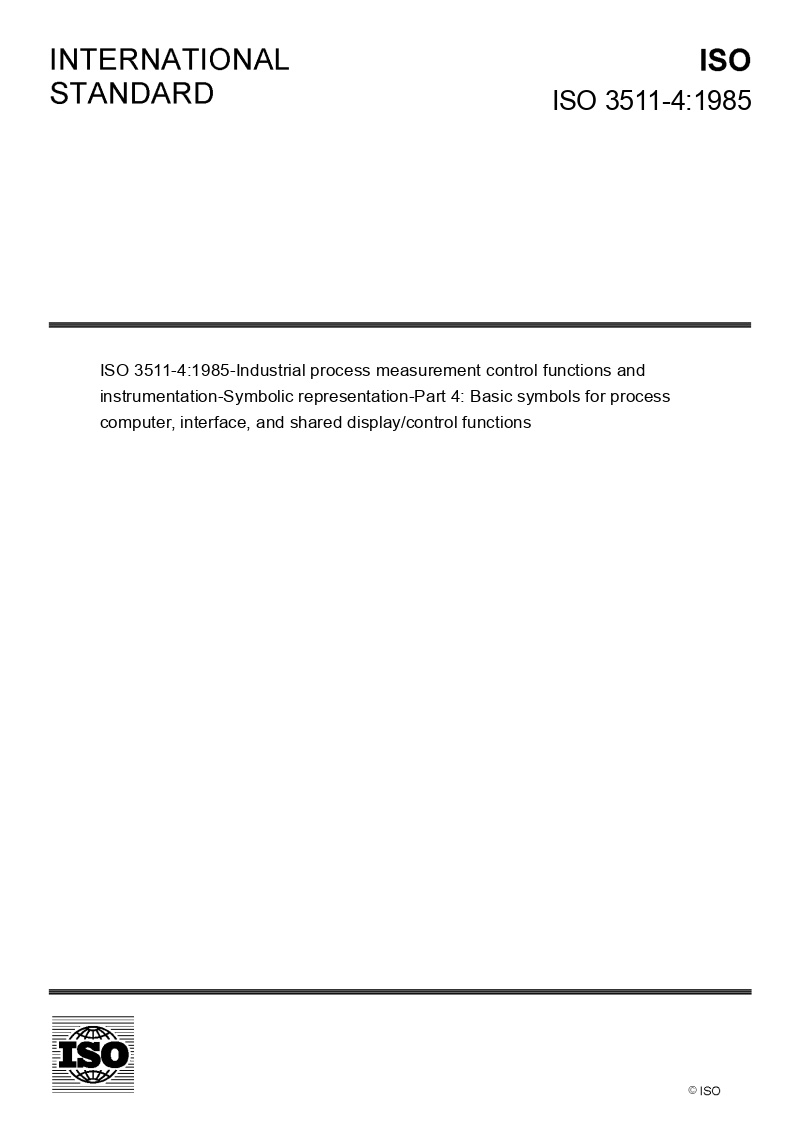

ISO 3511-4:1985-Industrial process measurement control functions and instrumentation — Symbolic representation-Part 4: Basic symbols for process computer, interface, and shared display/control functions

ISO 3511-4:1985

ISO 3511-4:1985-Industrial process measurement control functions and instrumentation — Symbolic representation-Part 4: Basic symbols for process computer, interface, and shared display/control functions

CURRENCY
70 EUR
Standard´s number:ISO 3511-4:1985
Pages:8
Edition:1
Released:1985
DESCRIPTION

ISO 3511-4:1985


The symbols in this part shall be considered a supplement to the symbols given in ISO 3511/1 and ISO 3511/2 and used in conjunction with them. The letter code for function identification shall be taken from table 1 of these two parts.The symbols are limited to identification on process flow diagrams, piping and instrument diagrams, etc. and do not provide means of illustrating specific instruments or parts thereof. The application methods are shown in the examples.
