>ISO Standards>ISO 5686-2:2024-Polygonal turret interface with flat contact surface — Part 2: Receivers of type F, H, A and X for shanks of type F, H and A
immediate downloadReleased: 2024

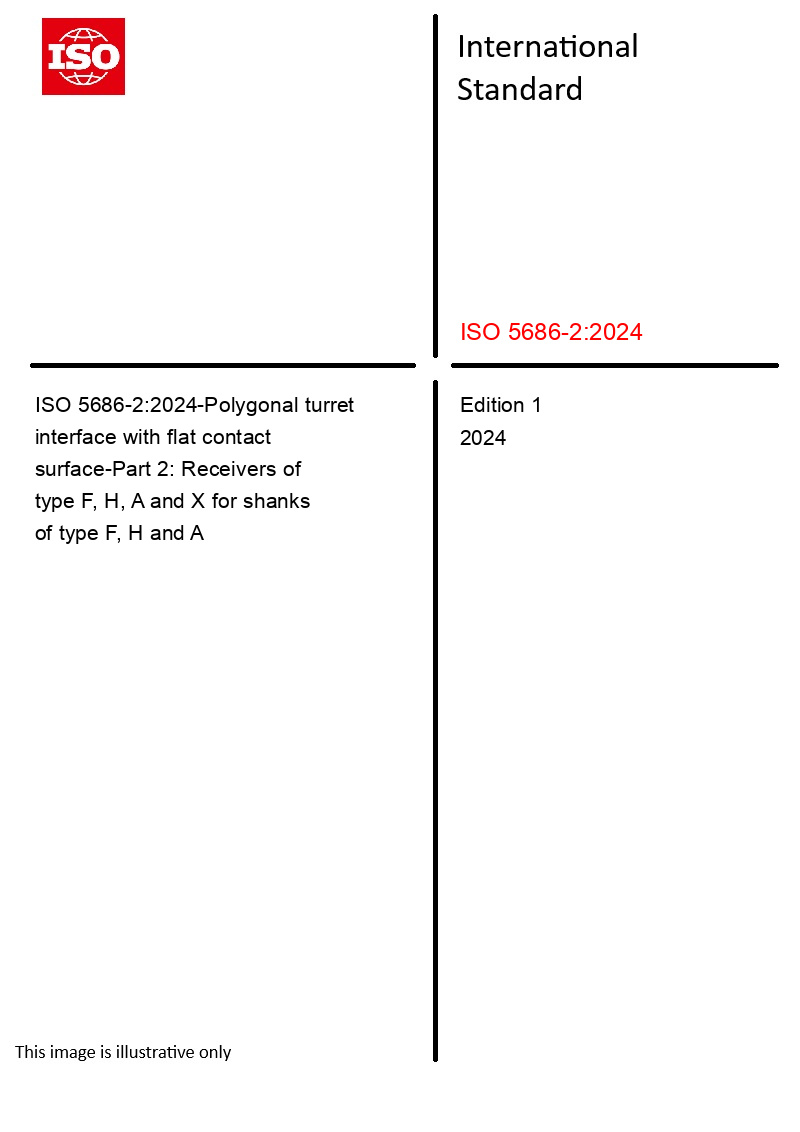

ISO 5686-2:2024-Polygonal turret interface with flat contact surface — Part 2: Receivers of type F, H, A and X for shanks of type F, H and A

ISO 5686-2:2024

ISO 5686-2:2024-Polygonal turret interface with flat contact surface — Part 2: Receivers of type F, H, A and X for shanks of type F, H and A

Format
Availability
Price and currency
English PDF
Immediate download
Printable
230.00 EUR
English Hardcopy
In stock
230.00 EUR
French PDF
Immediate download
Printable
230.00 EUR
French Hardcopy
In stock
230.00 EUR
Standard´s number:ISO 5686-2:2024
Pages:51
Edition:1
Released:2024
DESCRIPTION

ISO 5686-2:2024


This document specifies the dimensions of polygonal taper receivers with flat contact surface (PTI). These receivers are the machine-side part of the interface to the (in cutting process non-rotating) tool carrier of machine tools (e.g. turret lathes, turning centres). This document specifies four types of machine-side interface types, which differ at the face contact. The bores for receiving the tool shanks themselves are designed identically for all types. —     Receiver type F has one hole for the coolant supply (F = fluid); PTI-F type tool holder can be installed in 0°- and 180°-position. —     Receiver type H has a primary coolant hole for the main supply and a secondary coolant hole for an intermediate tool position on the face contact (H = half). For PTI type H holders an installation position offset by 180° is not possible. —     Receiver type A has one hole on the face contact for the primary coolant supply and one additional hole for supplying the tool holder (driven tool) with sealing air (A = air). Two more bores allow the installation of PTI-A holders with spring-type straight pin in 0°- and 180°-position. —     Receiver type X has a primary coolant hole for the main supply and a secondary coolant hole for an intermediate tool position on the face contact. In addition, the type X receiver has one hole for supplying the tool holder (driven tool) with sealing air and two bores for the 0°- and 180°-position of the spring-type straight pin of PTI-A holders.
