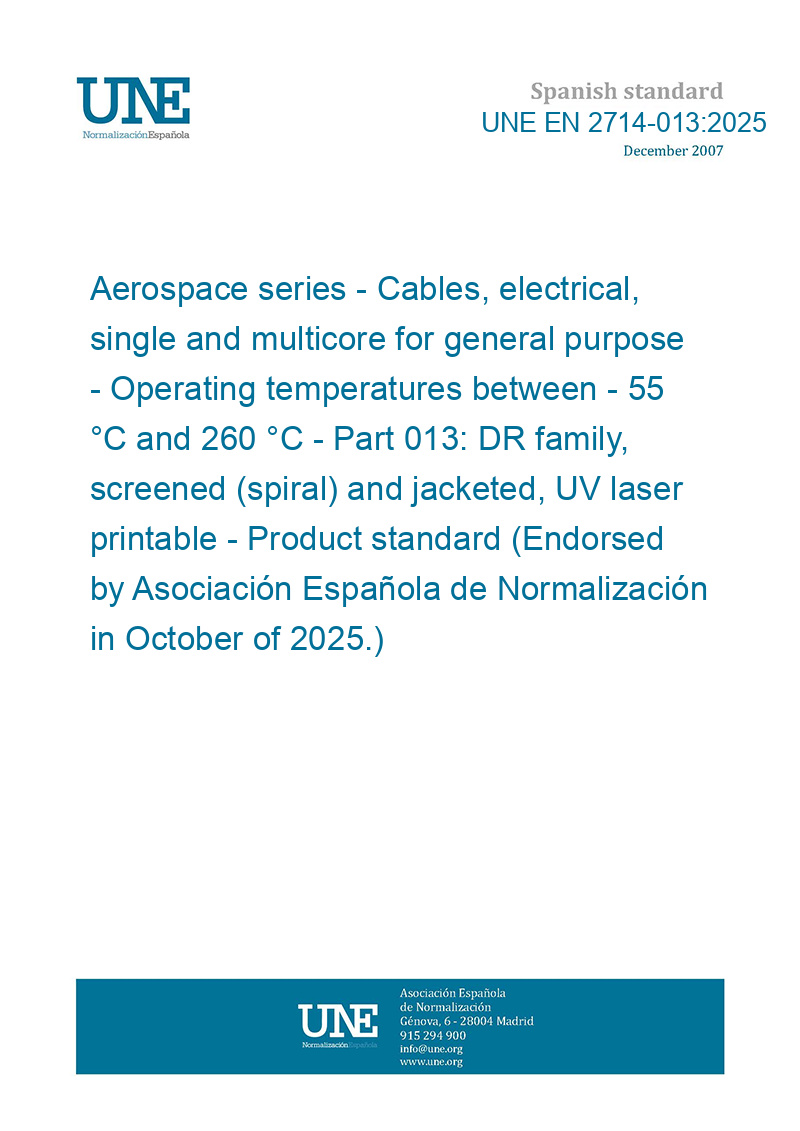

UNE EN 2714-013:2025
Aerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between - 55 °C and 260 °C - Part 013: DR family, screened (spiral) and jacketed, UV laser printable - Product standard (Endorsed by Asociación Española de Normalización in October of 2025.)
Material aeroespacial. Cables, eléctricos, con un conductor y multiconductores para uso general. Temperaturas de utilización comprendidas entre -55ºC y 260ºC. Parte 013: Familia DR, Blindados (espiral) y enfundados, imprimibles con láser UV. Norma de producto. (Ratificada por la Asociación Española de Normalización en octubre de 2025.)
| Standard number: | UNE EN 2714-013:2025 |
| Pages: | 16 |
| Released: | 2025-10-01 |
| Status: | Standard |
UNE EN 2714-013:2025
This document specifies the characteristics of UV laser printable DR family, single and multicore screened (spiral) and jacketed electrical lightweight cables for use in the on-board electrical systems of aircraft, at operating temperatures between "55 °C and 260 °C. Nevertheless, if needed, " 65 °C is also acceptable as shown by cold test. It is also be possible to mark these cables by qualified compatible marking. These markings satisfy the requirements of EN 3838.
