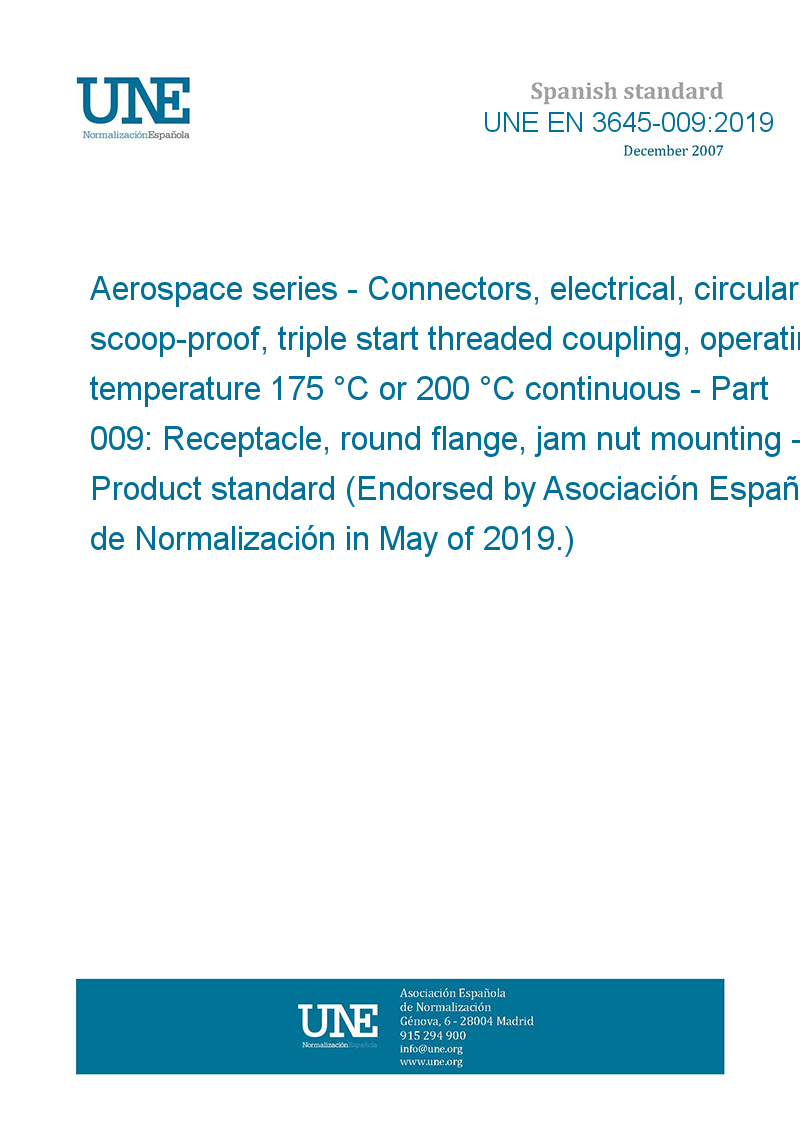

UNE EN 3645-009:2019
Aerospace series - Connectors, electrical, circular, scoop-proof, triple start threaded coupling, operating temperature 175 °C or 200 °C continuous - Part 009: Receptacle, round flange, jam nut mounting - Product standard (Endorsed by Asociación Española de Normalización in May of 2019.)
Material aeroespacial. Conectores eléctricos circulares, con contactos protegidos, con acoplamiento roscado de triple entrada, temperaturas de funcionamiento entre 175 °C o 200 °C continua. Parte 009: Receptáculo, montado con brida circular con tuerca. Norma de producto (Ratificada por la Asociación Española de Normalización en mayo de 2019.)
| Standard number: | UNE EN 3645-009:2019 |
| Pages: | 12 |
| Released: | 2019-05-01 |
| Status: | Standard |
UNE EN 3645-009:2019
This European Standard specifies the characteristics of jam nut mounting receptacles in the family of circular, electrical connectors, with triple start threaded coupling. It applies to models in Table 3. For plugs and protective covers, see EN 3645-006, EN 3645-008, EN 3645-011 and EN 3645-012 respectively. For filler plugs and rear accessories associated with this receptacle, see EN 3645-002. These connectors are derived from and interchangeable with models W, F, J, M, Z, T and K in specification MIL-DTL-38999/24.
