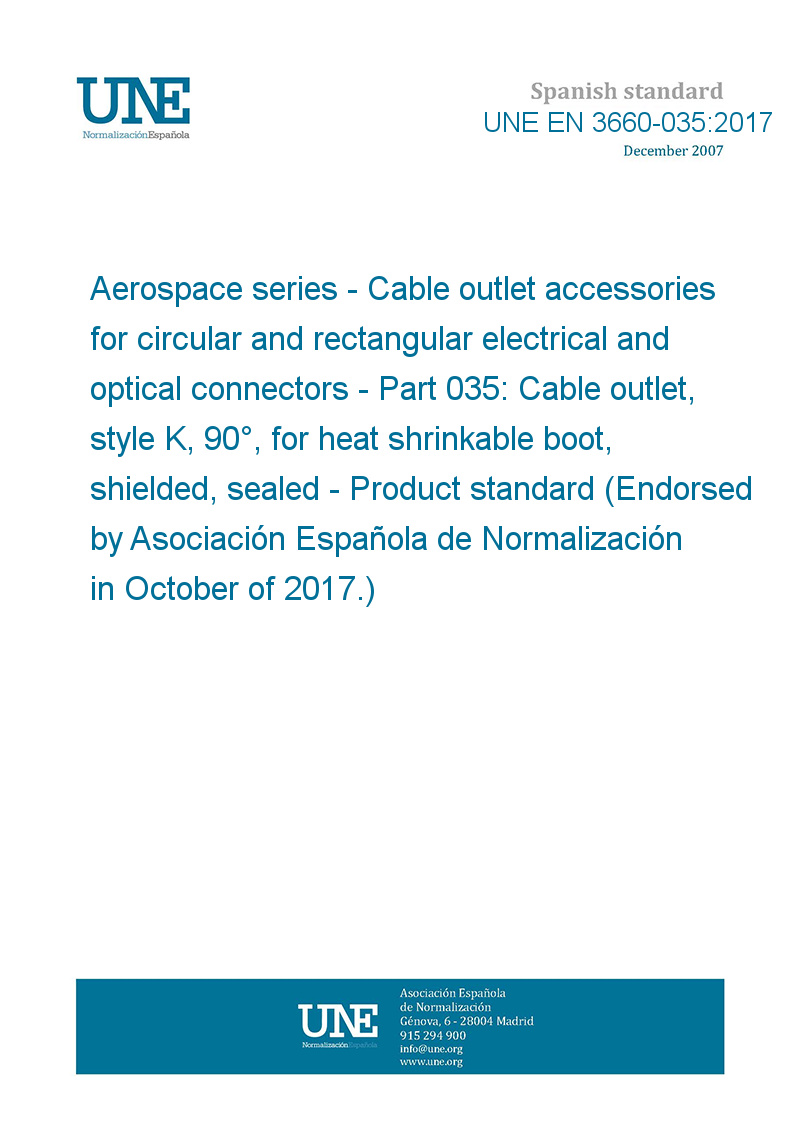

UNE EN 3660-035:2017
Aerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 035: Cable outlet, style K, 90°, for heat shrinkable boot, shielded, sealed - Product standard (Endorsed by Asociación Española de Normalización in October of 2017.)
Material aeroespacial. Accesorios de cable de toma de corriente para conectores circulares y rectangulares, eléctricos y ópticos. Parte 035: Toma de corriente para cable, estilo K, 90º, para piezas moldeadas termorretráctiles, blindada, soldada para EN 3645. Norma de producto. (Ratificada por la Asociación Española de Normalización en octubre de 2017.)
| Standard number: | UNE EN 3660-035:2017 |
| Pages: | 20 |
| Released: | 2017-10-01 |
| Status: | Standard |
UNE EN 3660-035:2017
This European Standard defines a range of cable outlets, style K, 90º, shielded, sealed for heat shrinkable boot, for use with memory metal rings under the following conditions. The mating connectors are listed in EN 3660-002. NOTE Class N in EN 3660-001 cross refers to Class F in EN3660-035. Temperature range, Class N(F) : " 65 °C to 200 °C (See note above) Class K : " 65 °C to 200 °C Class W : " 65 °C to 175 °C Class T : " 65 °C to 175 °C (Nickel PTFE plating) Class Z : " 65 °C to 175 °C (Zinc nickel plating) Associated electrical accessories : EN 3660-034 memory metal rings (for shield termination backshells). These cable outlets are designed for termination of overall shielding braid or individual cable shields. They accommodate/permit the termination of heat shrinkable boots.
