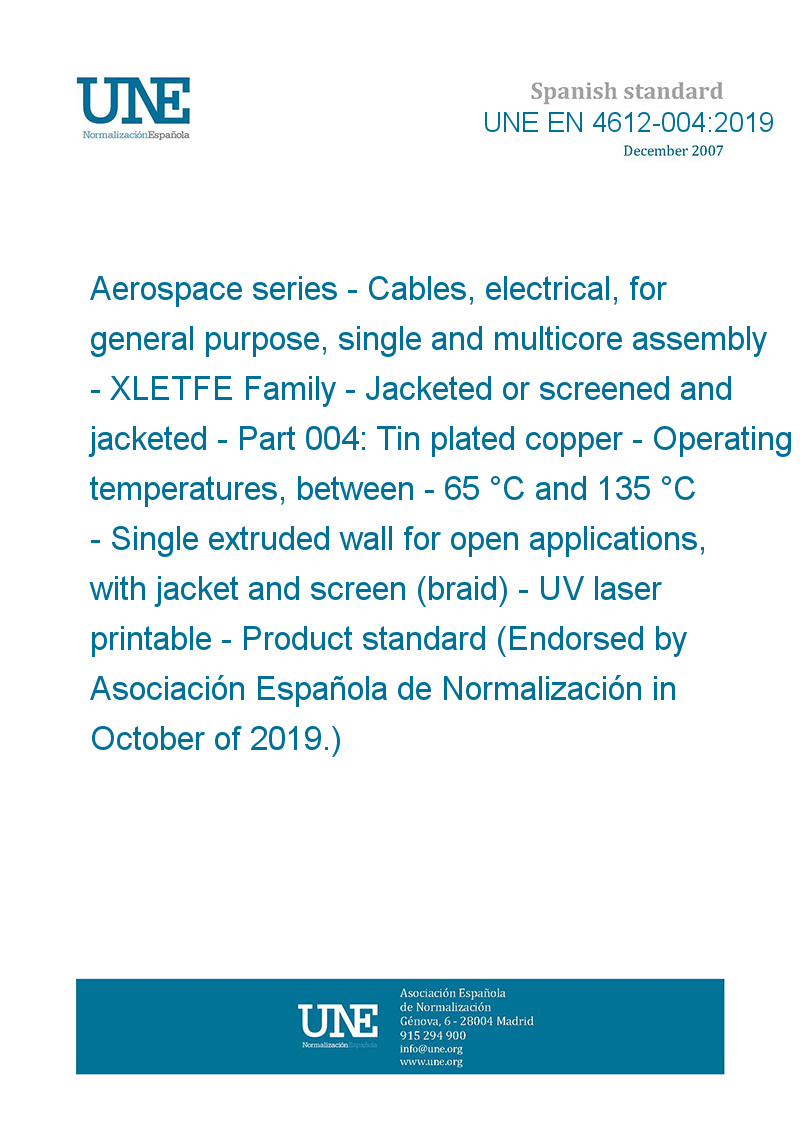

UNE EN 4612-004:2019
Aerospace series - Cables, electrical, for general purpose, single and multicore assembly - XLETFE Family - Jacketed or screened and jacketed - Part 004: Tin plated copper - Operating temperatures, between - 65 °C and 135 °C - Single extruded wall for open applications, with jacket and screen (braid) - UV laser printable - Product standard (Endorsed by Asociación Española de Normalización in October of 2019.)
Material aeroespacial. Cables eléctricos con un conductor y multiconductores para uso general. Familia XLETFE. Enfundados o blindados y enfundados. Parte 004: Cobre estañado. Temperaturas de utilización comprendidas entre -65 °C y 135 °C. Conductor individual aislado para aplicaciones externas, enfundado y blindado (trenzado). Imprimible con láser UV. Norma de producto. (Ratificada por la Asociación Española de Normalización en octubre de 2019.)
| Standard number: | UNE EN 4612-004:2019 |
| Pages: | 13 |
| Released: | 2019-10-01 |
| Status: | Standard |
UNE EN 4612-004:2019
This European Standard specifies the characteristics of UV laser printable jacket, tin plated copper conductor, electrical cables Crosslinked Ethylene Tetra Fluoro Ethylene co-polymer (XLETFE) family for use in the on board electrical systems of aircraft operating at temperatures between 65 °C and 135 °C, operating at voltages not exceeding 600 V rms at sea level. This insulation system has been used in aerospace applications using 115 V (phase-to-neutral) 400 Hz ac and 28 Vdc. Verification of the suitability of cables for use in other electrical systems is the responsibility of the user. These jacketed cables are suitable for airframe use without additional protection when the jacket is present. When the jacket is stripped back the cores may need additional protection. In case of conflict between this standard and other referenced documents the requirements of this standard shall take precedence.
