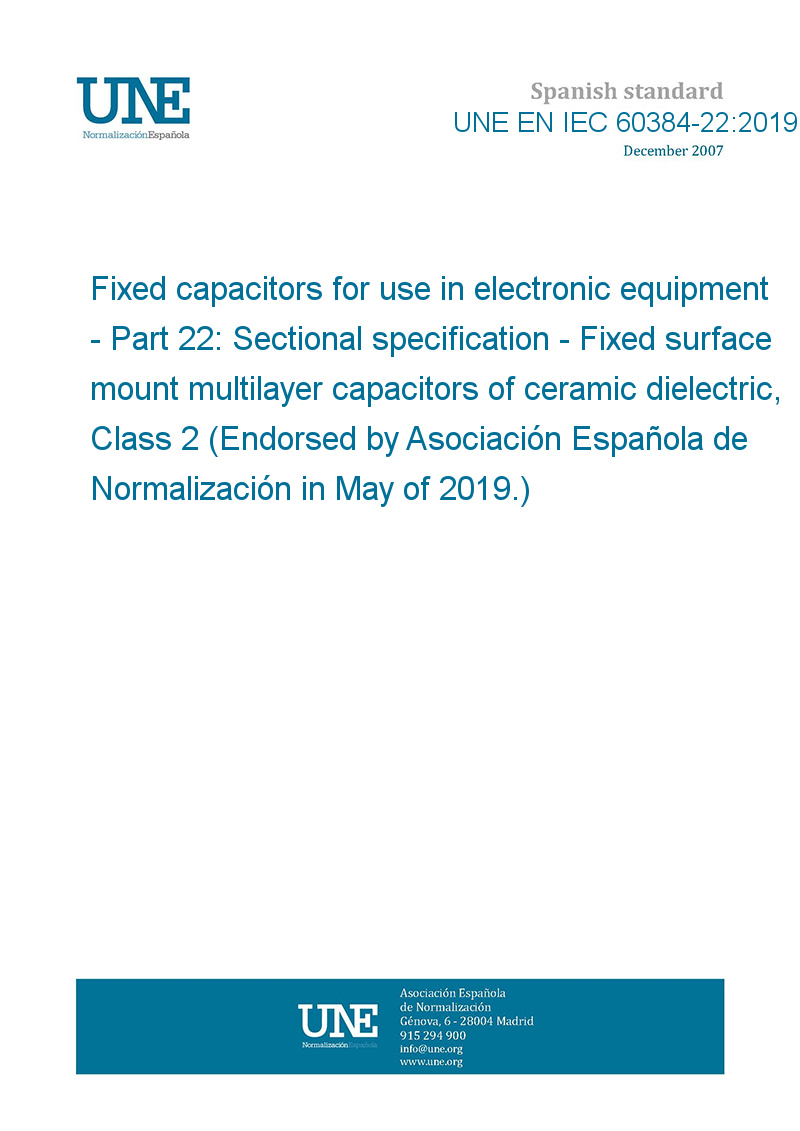

UNE EN IEC 60384-22:2019
Fixed capacitors for use in electronic equipment - Part 22: Sectional specification - Fixed surface mount multilayer capacitors of ceramic dielectric, Class 2 (Endorsed by Asociación Española de Normalización in May of 2019.)
Condensadores fijos para uso en equipos electrónicos. Parte 22: Especificación intermedia: Condensadores multicapa de dieléctrico cerámico montados en superficie, Clase 2 (Ratificada por la Asociación Española de Normalización en mayo de 2019.)
| Standard number: | UNE EN IEC 60384-22:2019 |
| Pages: | 53 |
| Released: | 2019-05-01 |
| Status: | Standard |
UNE EN IEC 60384-22:2019
This part of IEC 60384 is applicable to fixed unencapsulated surface mount multilayer capacitors of ceramic dielectric, Class 2, for use in electronic equipment. These capacitors have metallized connecting pads or soldering strips and are intended to be mounted on printed boards, or directly onto substrates for hybrid circuits. Capacitors for electromagnetic interference suppression are not included, but are covered by IEC 60384-14. The object of this document is to prescribe preferred ratings and characteristics and to select from IEC 60384-1 the appropriate quality assessment procedures, tests and measuring methods and to give general performance requirements for this type of capacitor. Test severities and requirements prescribed in detail specifications referring to this sectional specification shall be of equal or higher performance level, lower performance levels are not permitted.
