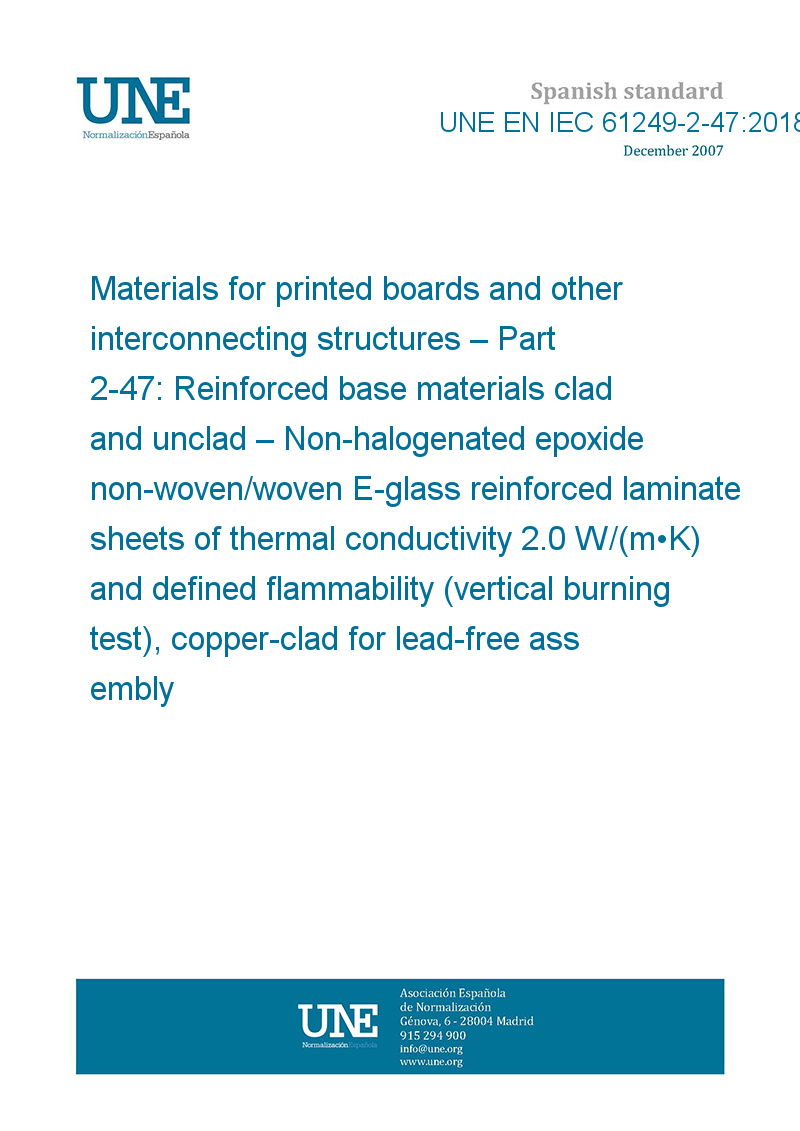

UNE EN IEC 61249-2-47:2018
Materials for printed boards and other interconnecting structures – Part 2-47: Reinforced base materials clad and unclad – Non-halogenated epoxide non-woven/woven E-glass reinforced laminate sheets of thermal conductivity 2.0 W/(m•K) and defined flammability (vertical burning test), copper-clad for lead-free assembly
Materiales para placas impresas y otras estructuras de interconexión. Parte 2-47: Materiales de base reforzados, con y sin revestimiento. Hojas laminadas reforzadas de vidrio tipo E entrelazado/no entrelazado con epóxido no halogenado de conductividad térmica (2.0 W/m K) e inflamabilidad definida (ensayo de combustión vertical), con revestimiento de cobre para montajes sin plomo. (Ratificada por la Asociación Española de Normalización en mayo de 2018.)
| Standard number: | UNE EN IEC 61249-2-47:2018 |
| Pages: | 31 |
| Released: | 2018-05-01 |
| Status: | Standard |
UNE EN IEC 61249-2-47:2018
This part of IEC 61249 gives requirements for properties of non-halogenated epoxide non woven reinforced core/woven E-glass reinforced surface laminate sheets of thermal conductivity and defined flammability (vertical burning test), copper-clad for lead-free assembly in thicknesses of 0,60 mm up to 1,70 mm. The flammability rating is achieved through the use of non-halogenated fire retardants reacted as part of the epoxide polymeric structure. The glass transition temperature is defined to be 105 °C minimum. Thermal Conductivity is defined to beÿ2,0±0,30 ÿW/ m" K. Some property requirements may have several classes of performance. The class desired should be specified on the purchase order, otherwise the default class of material will be supplied.
