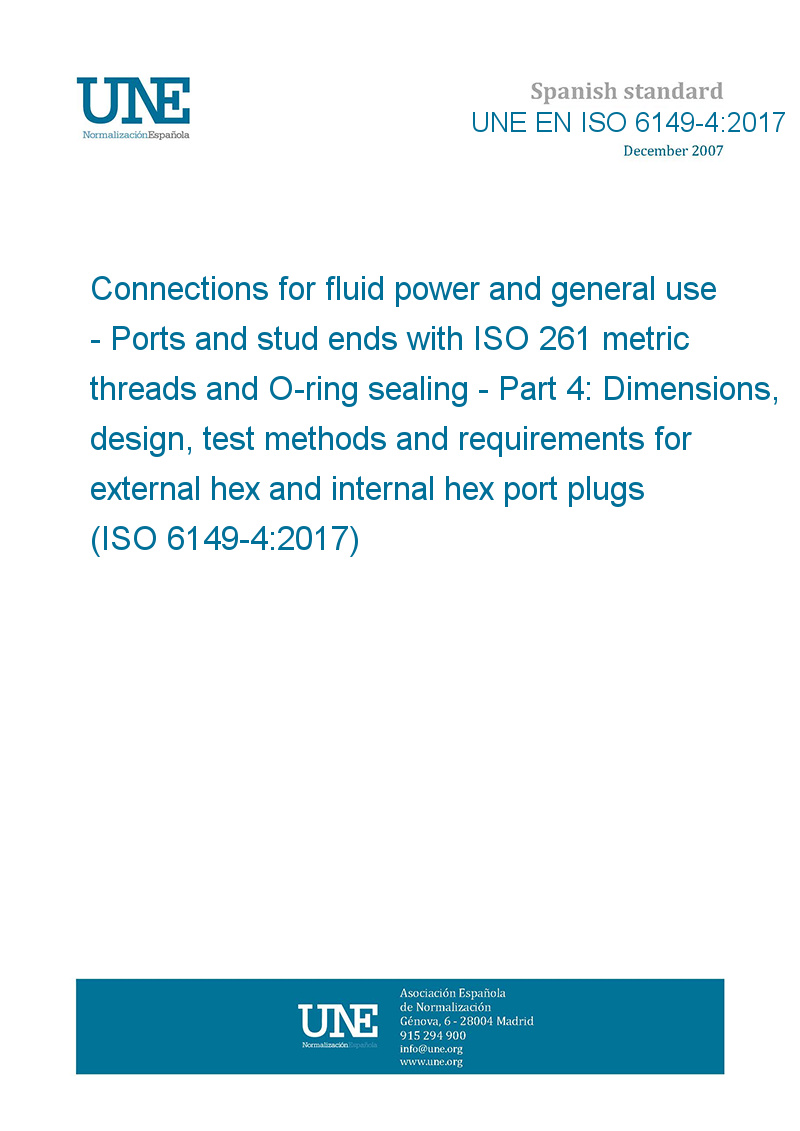

UNE EN ISO 6149-4:2017
Connections for fluid power and general use - Ports and stud ends with ISO 261 metric threads and O-ring sealing - Part 4: Dimensions, design, test methods and requirements for external hex and internal hex port plugs (ISO 6149-4:2017)
Conexiones para transmisiones hidráulicas y aplicaciones generales. Orificios y extremos macho con roscas métricas ISO 261 y junta de estanquidad tórica. Parte 4: Dimensiones, diseño, métodos de ensayo y requisitos de los extremos de conexión macho con seis caras interiores y exteriores. (ISO 6149-4:2017).
| Standard number: | UNE EN ISO 6149-4:2017 |
| Pages: | 19 |
| Released: | 2017-12-13 |
| Status: | Standard |
| Pages (Spanish): | 20 |
UNE EN ISO 6149-4:2017
This document specifies dimensions and performance requirements for external hex and internal hex port plugs for use with ISO 6149-1 ports. Port plugs in accordance with this document can be used at working pressures up to 63 MPa (630 bar1)). The permissible working pressure depends upon the plug end size, materials, design, working conditions, application, etc. Conformance to the dimensional information in this document does not guarantee rated performance. Each manufacturer is expected to perform testing according to the specification contained in this document to assure that components comply with the performance ratings.
