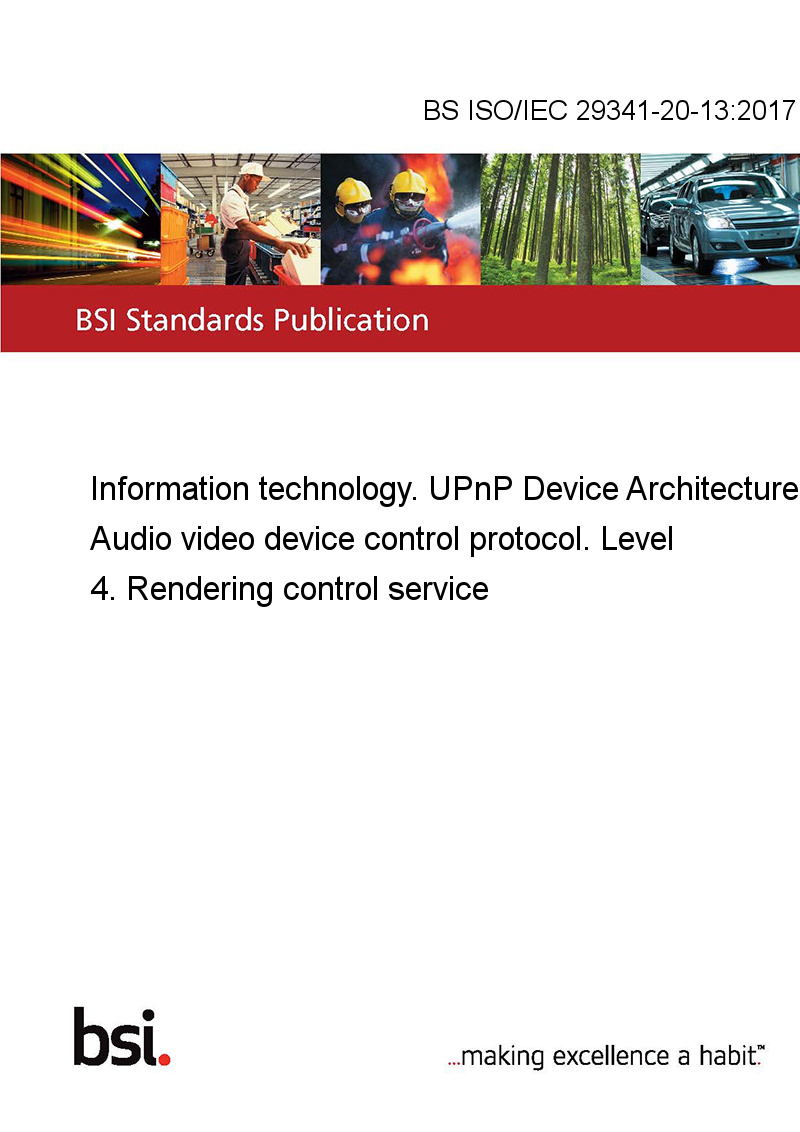

BS ISO/IEC 29341-20-13:2017 Information technology. UPnP Device Architecture Audio video device control protocol. Level 4. Rendering control service

BS ISO/IEC 29341-20-13:2017

Information technology. UPnP Device Architecture Audio video device control protocol. Level 4. Rendering control service

Format
Availability
Price and currency
English Secure PDF
Immediate download
418.85 USD
English Hardcopy
In stock
418.85 USD
Standard number:BS ISO/IEC 29341-20-13:2017
Pages:146
Released:2017-09-30
ISBN:978 0 580 90847 7
Status:Standard
DESCRIPTION

BS ISO/IEC 29341-20-13:2017


This standard BS ISO/IEC 29341-20-13:2017 Information technology. UPnP Device Architecture is classified in these ICS categories:
  • 35.200 Interface and interconnection equipment

This service template is compliant with the UPnP Device Architecture version 1.0 [14]. It defines a service type referred to herein as RenderingControl.

1.1 Introduction

Most rendering devices contain a number of dynamically configurable attributes that affect how the current content is rendered. For example, video rendering devices, such as TVs, allow user control of display characteristics such as brightness and contrast, whereas audio rendering devices allow control of audio characteristics such as volume, balance, equalizer settings, etc. The RenderingControl service is intended to provide control points with the ability to query and/or adjust any rendering attribute that the device supports.

The RenderingControl service enables a control point to:

  1. Discover the set of attributes supported by the device.

  2. Retrieve the current setting of any supported attribute

  3. Change the setting of (that is: control) any modifiable attribute

  4. Perform a set of content transforms, which, in addition to the above, also enables functionality for selecting content depended options, for example:

    1. Selecting a specific sub-stream in a composite stream for rendering.

    2. Turning subtitling on or off.

  5. Restore the settings defined by a named Preset

The RenderingControl service does not:

  1. Control the flow of the associated content (for example, Play, Stop, Pause, Seek, etc.).

  2. Provide a mechanism to enumerate locally stored content.

  3. Provide a mechanism to send content to another device (via the home network or direct connection).

1.2 Multi-input Devices

Some high-end AV device are capable of receiving multiple pieces of content at the same time and combining that content together so that it can be rendered together using a single set of output hardware. For example, while displaying a TV program, high-end TVs can also display additional content (for example, VCR content) in a PIP (Picture-In-Picture) window. Similarly, a Karaoke machine can mix together the background music with a singer’s voice so that both sounds are played together on the same set of speakers.

As with all devices, the RenderingControl service allows a control point to adjust the output characteristics of the post-mixed content before it is actually rendered. However, in many cases, control points may need to control the output characteristics of the individual input content before it is mixed together with the other input content. In order to support this, the RenderingControl service includes an InstanceID argument with each action that allows the control point to identify on which content the action is to be applied (for example, the post-mixed content or one of the pre-mixed input content items).

By convention, an InstanceID of 0 indicates that the invoked action shall be applied to the post-mixed content. Similarly, each pre-mixed input content is assigned a unique InstanceID whose value is a non-zero, positive integer. Refer to Annex A for additional information.
