Released: 01.02.2022

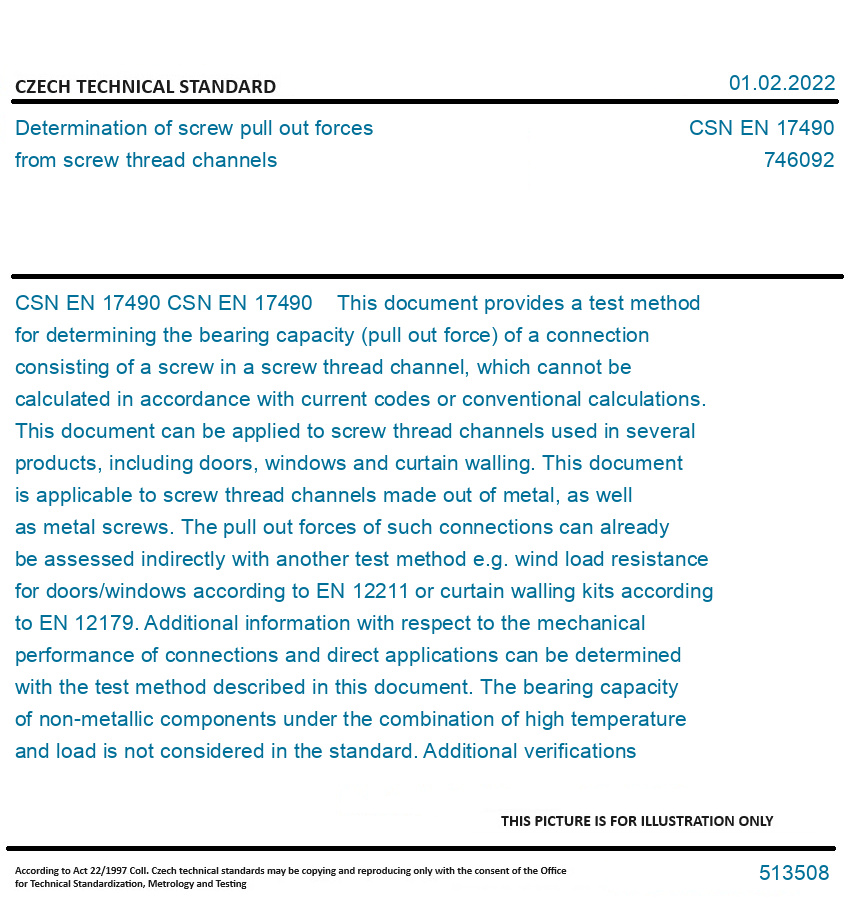

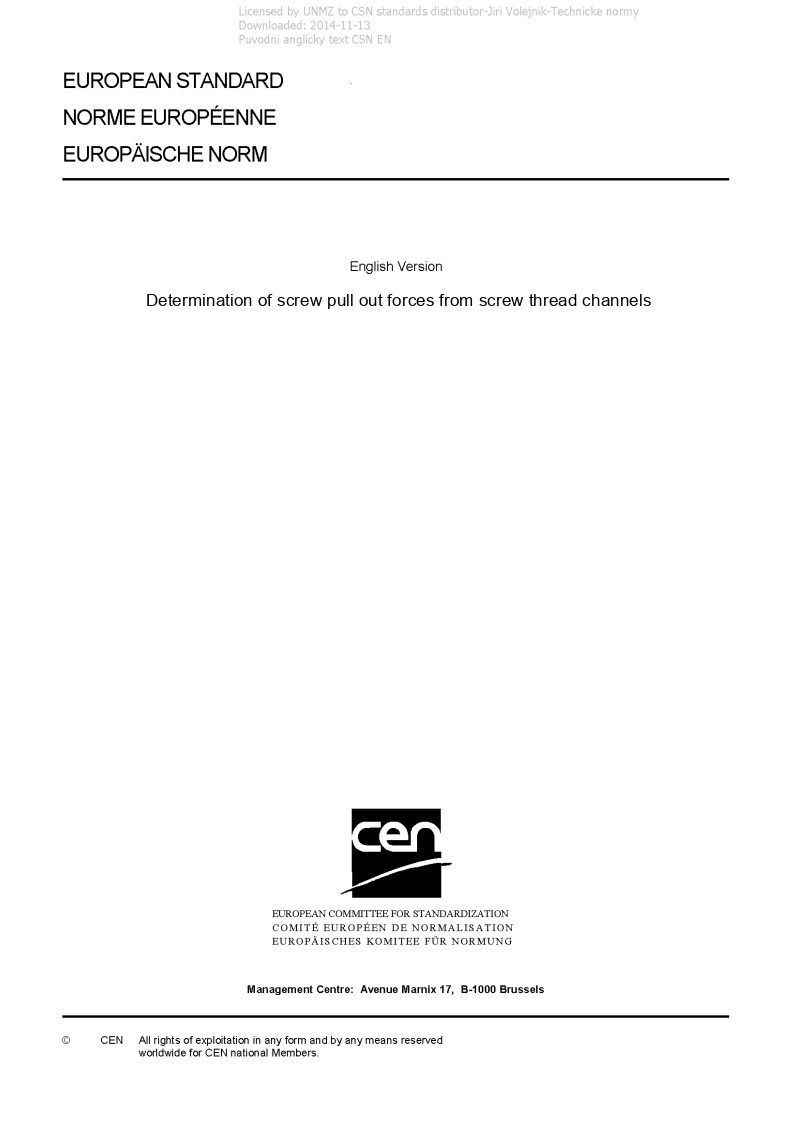

CSN EN 17490 - Determination of screw pull out forces from screw thread channels

CSN EN 17490

Determination of screw pull out forces from screw thread channels

Format
Availability
Price and currency
English Hardcopy
In stock
57.78 USD
FREE Shipping
Number of Standard:CSN EN 17490
Category:746092
Pages:16
Released:01.02.2022
Catalog number:513508
DESCRIPTION

CSN EN 17490

CSN EN 17490 This document provides a test method for determining the bearing capacity (pull out force) of a connection consisting of a screw in a screw thread channel, which cannot be calculated in accordance with current codes or conventional calculations. This document can be applied to screw thread channels used in several products, including doors, windows and curtain walling. This document is applicable to screw thread channels made out of metal, as well as metal screws. The pull out forces of such connections can already be assessed indirectly with another test method e.g. wind load resistance for doors/windows according to EN 12211 or curtain walling kits according to EN 12179. Additional information with respect to the mechanical performance of connections and direct applications can be determined with the test method described in this document. The bearing capacity of non-metallic components under the combination of high temperature and load is not considered in the standard. Additional verifications are performed depending on the type of the non-metallic material used.
Original English text of CSN EN Standard.
The price of the Standard included all amendments and correcturs.
