FREE SHIPPINGReleased: 2012

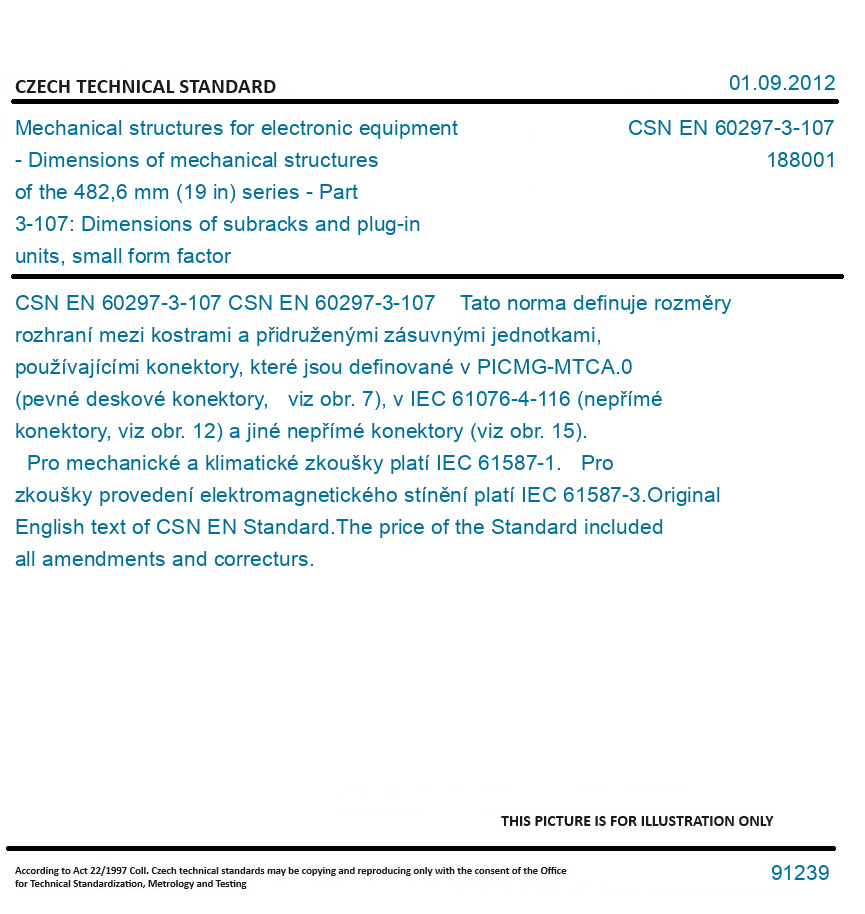

CSN EN 60297-3-107 - Mechanical structures for electronic equipment - Dimensions of mechanical structures of the 482,6 mm (19 in) series - Part 3-107: Dimensions of subracks and plug-in units, small form factor

CSN EN 60297-3-107

Mechanical structures for electronic equipment - Dimensions of mechanical structures of the 482,6 mm (19 in) series - Part 3-107: Dimensions of subracks and plug-in units, small form factor

Format
Availability
Price and currency
English Hardcopy
In stock
80.00 USD
Category:188001
Released:2012
Number of Standard:CSN EN 60297-3-107
DESCRIPTION

EN 60297-3-107


EN 60297-3-107 Mechanical structures for electronic equipment - Dimensions of mechanical structures of the 482,6 mm (19 in) series - Part 3-107: Dimensions of subracks and plug-in units, small form factor - IEC 60297-3-107:2012 defines the interface dimensions between subracks and associated plug-in units using connectors as defined in PICMG-MTCA.0 (Fixed board, see Figure 7) and IEC 61076-4-116 (Two part, see Figure 12) and other two part connectors, (see Figure 15). For mechanical and climatic tests refer to IEC 61587-1. For electromagnetic shielding performance tests refer to IEC 61587-3.

Original English text of CSN EN Standard.
The price of the Standard included all amendments and correcturs.
