CSN EN IEC 61169-64 ed. 2

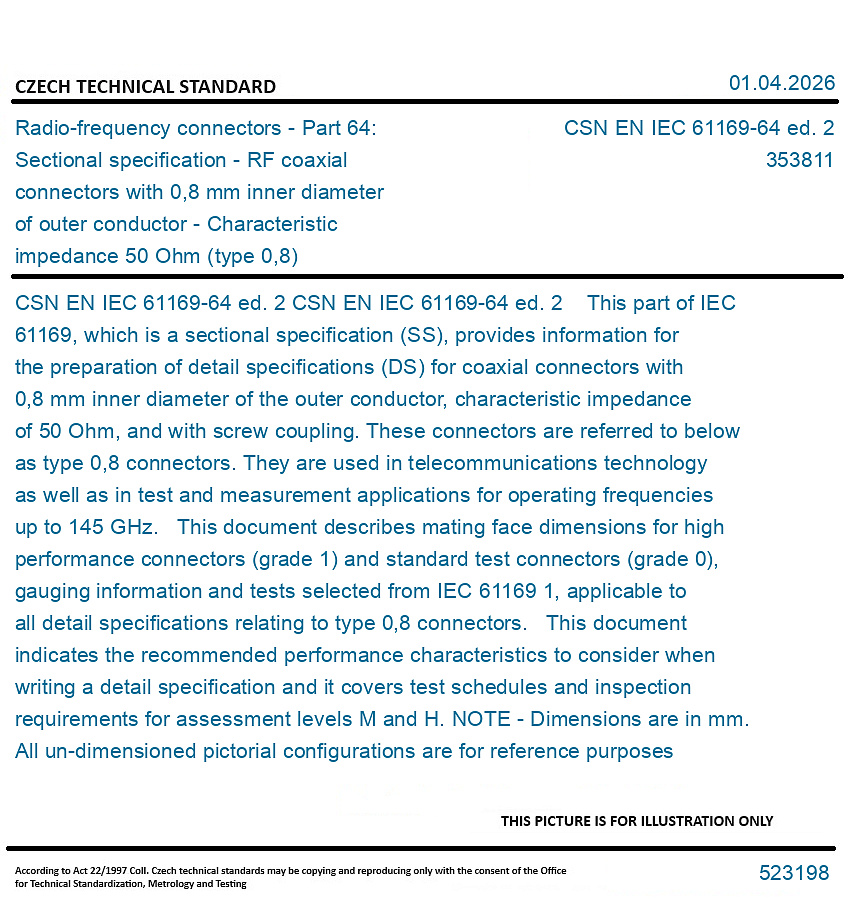

CSN EN IEC 61169-64 ed. 2 This part of IEC 61169, which is a sectional specification (SS), provides information for the preparation of detail specifications (DS) for coaxial connectors with 0,8 mm inner diameter of the outer conductor, characteristic impedance of 50 Ohm, and with screw coupling. These connectors are referred to below as type 0,8 connectors. They are used in telecommunications technology as well as in test and measurement applications for operating frequencies up to 145 GHz. This document describes mating face dimensions for high performance connectors (grade 1) and standard test connectors (grade 0), gauging information and tests selected from IEC 61169 1, applicable to all detail specifications relating to type 0,8 connectors. This document indicates the recommended performance characteristics to consider when writing a detail specification and it covers test schedules and inspection requirements for assessment levels M and H. NOTE - Dimensions are in mm. All un-dimensioned pictorial configurations are for reference purposes only.
Original English text of CSN EN Standard.
The price of the Standard included all amendments and correcturs.
