Released: 01.10.2022
CSN EN IEC 61169-67 - Radio frequency connectors - Part 67: Sectional specification for series TRL threaded triaxial connectors

CSN EN IEC 61169-67

Radio frequency connectors - Part 67: Sectional specification for series TRL threaded triaxial connectors

Format
Availability
Price and currency
English Hardcopy
In stock
76.67 USD
FREE Shipping
Number of Standard:CSN EN IEC 61169-67
Category:353811
Pages:32
Released:01.10.2022
Catalog number:515232
DESCRIPTION

CSN EN IEC 61169-67

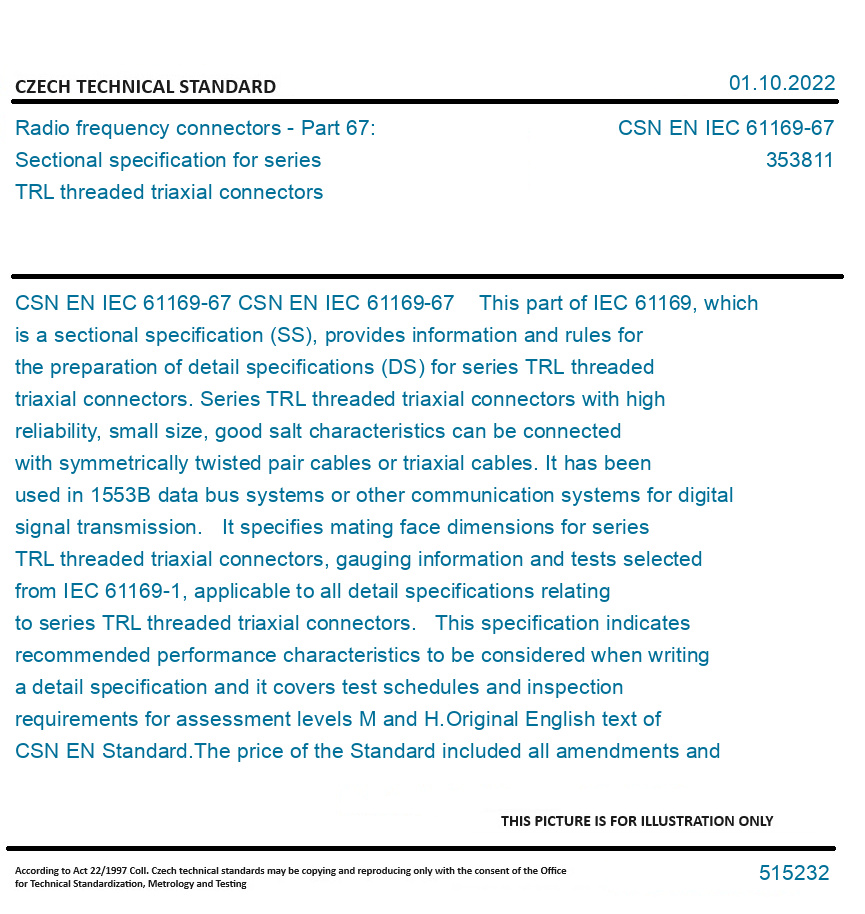

CSN EN IEC 61169-67 This part of IEC 61169, which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for series TRL threaded triaxial connectors. Series TRL threaded triaxial connectors with high reliability, small size, good salt characteristics can be connected with symmetrically twisted pair cables or triaxial cables. It has been used in 1553B data bus systems or other communication systems for digital signal transmission. It specifies mating face dimensions for series TRL threaded triaxial connectors, gauging information and tests selected from IEC 61169-1, applicable to all detail specifications relating to series TRL threaded triaxial connectors. This specification indicates recommended performance characteristics to be considered when writing a detail specification and it covers test schedules and inspection requirements for assessment levels M and H.
Original English text of CSN EN Standard.
The price of the Standard included all amendments and correcturs.
