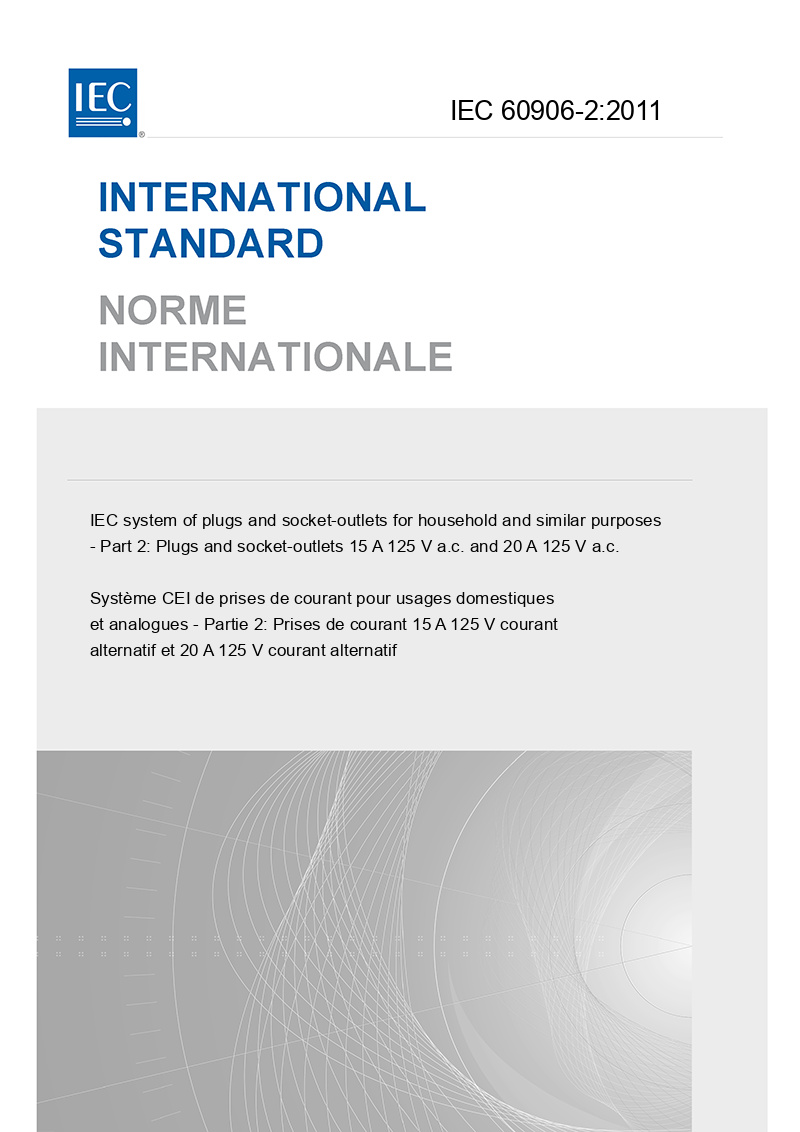

IEC 60906-2:2011
IEC system of plugs and socket-outlets for household and similar purposes - Part 2: Plugs and socket-outlets 15 A 125 V a.c. and 20 A 125 V a.c.
Système CEI de prises de courant pour usages domestiques et analogues - Partie 2: Prises de courant 15 A 125 V courant alternatif et 20 A 125 V courant alternatif
| Standard number: | IEC 60906-2:2011 |
| Released: | 2011-05-12 |
| Language: | English/French - Bilingual |
IEC 60906-2:2011
IEC 60906-2:2011 applies to the IEC system of plugs and socket-outlets rated 15 A 125 V a.c. and 20 A 125 V a.c. for household and similar purposes, for the connection of equipment to distribution systems having nominal voltages between 100 V and 130 V a.c. in so far as dimensional requirements are concerned. This third edition of IEC 60906-2 cancels and replaces the second edition published in 1997, and constitutes a technical revision. The main changes from the previous edition are as follows: - revision to tolerances on the slot dimensions; - incorporate a shorter maximum length of blade; - new dimensions to define the recess of electrical contacts; - new gage for inspection to verify dimensional compliance to protection from electrical shock during partial insertion and withdrawal of plug blades.
