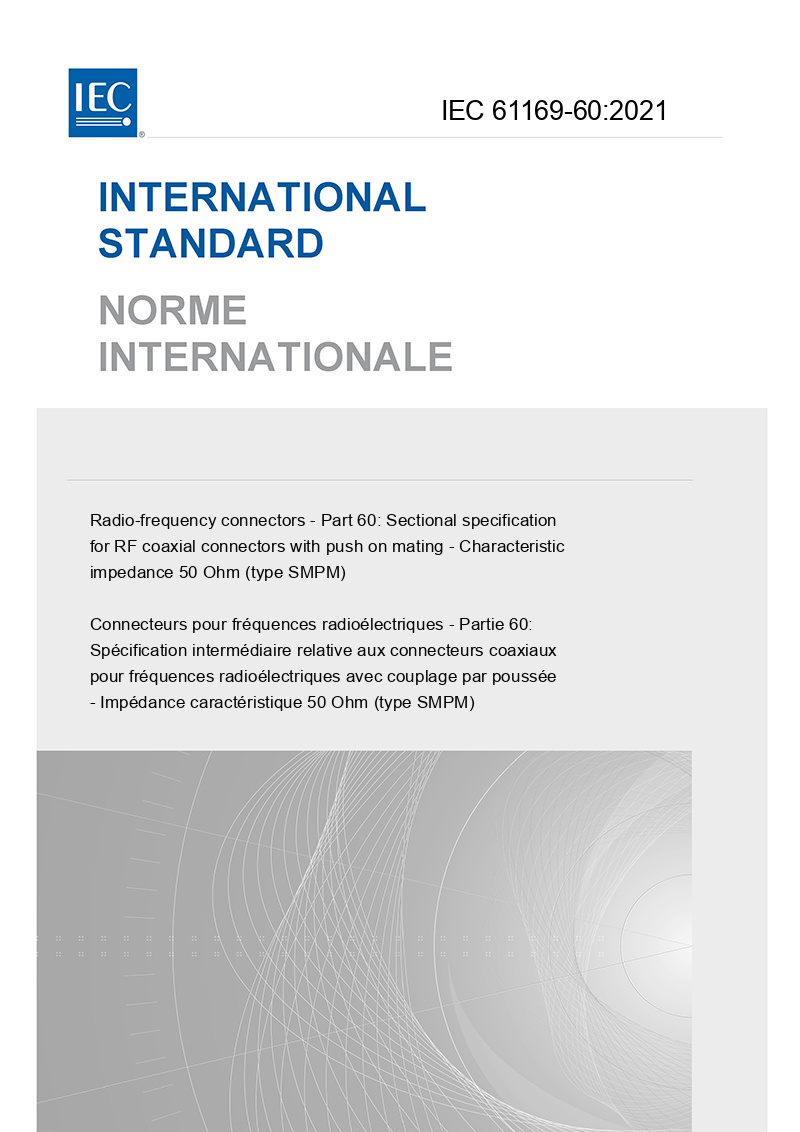

IEC 61169-60:2021
Radio-frequency connectors - Part 60: Sectional specification for RF coaxial connectors with push on mating - Characteristic impedance 50 Ohm (type SMPM)
Connecteurs pour fréquences radioélectriques - Partie 60: Spécification intermédiaire relative aux connecteurs coaxiaux pour fréquences radioélectriques avec couplage par poussée - Impédance caractéristique 50 Ohm (type SMPM)
Standard number: | IEC 61169-60:2021 |
Released: | 2021-03-17 |
Language: | English/French - Bilingual |
IEC 61169-60:2021
IEC 61169-60:2021 provides information and rules for the preparation of detail specifications (DS) for RF coaxial connectors with push-on coupling, typically for use in 50 Ω RF cables or micro-strips in microwave, telecommunication, wireless systems and other fields (SMPM). It specifies mating face dimensions for general purpose connectors – grade 2, dimensional details of standard test connectors-grade 0, gauging information and tests selected from IEC 61169-1, applicable to all detail specifications relating to series SMPM RF connectors. This specification indicates recommended performance characteristics to be considered when writing a detail specification and it covers test schedules and inspection requirements for assessment levels M and H.
