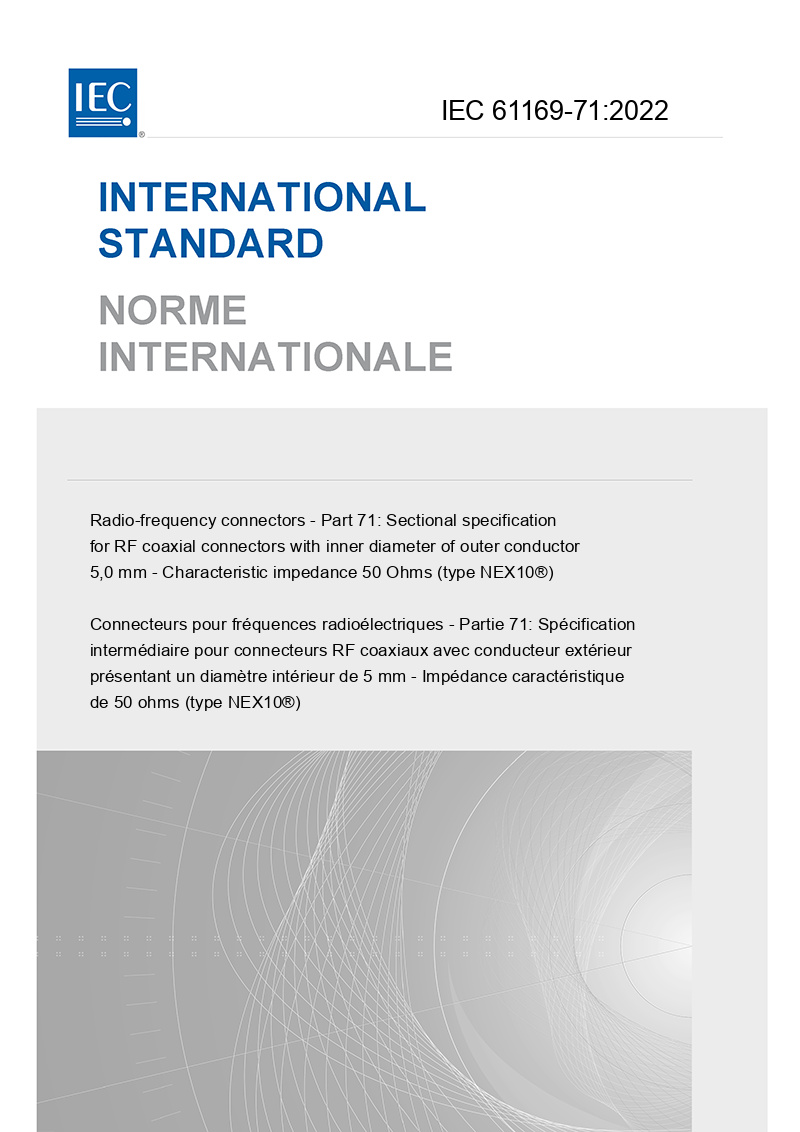

IEC 61169-71:2022
Radio-frequency connectors - Part 71: Sectional specification for RF coaxial connectors with inner diameter of outer conductor 5,0 mm - Characteristic impedance 50 Ohms (type NEX10®)
Connecteurs pour fréquences radioélectriques - Partie 71: Spécification intermédiaire pour connecteurs RF coaxiaux avec conducteur extérieur présentant un diamètre intérieur de 5 mm - Impédance caractéristique de 50 ohms (type NEX10®)
Format
Availability
Price and currency
English/French - Bilingual PDF
Immediate download
287.22 USD
English/French - Bilingual Hardcopy
in stock
287.22 USD
| Standard number: | IEC 61169-71:2022 |
| Released: | 2022-05-30 |
| Language: | English/French - Bilingual |
DESCRIPTION
IEC 61169-71:2022
IEC 61169-71:2022, which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for RF coaxial connector, typically for use in 50 Ω radio communication systems, type NEX10® . This document describes mating face dimensions for general purpose connectors (grade 2), dimensional details of standard test connectors (grade 1), gauging information and tests selected from IEC 61169-1, applicable to all detail specifications relating to type NEX10® RF coaxial connectors. This document indicates recommended performance characteristics to be considered when writing a detail specification and it covers test schedules and inspection requirements for assessment levels M and H.
