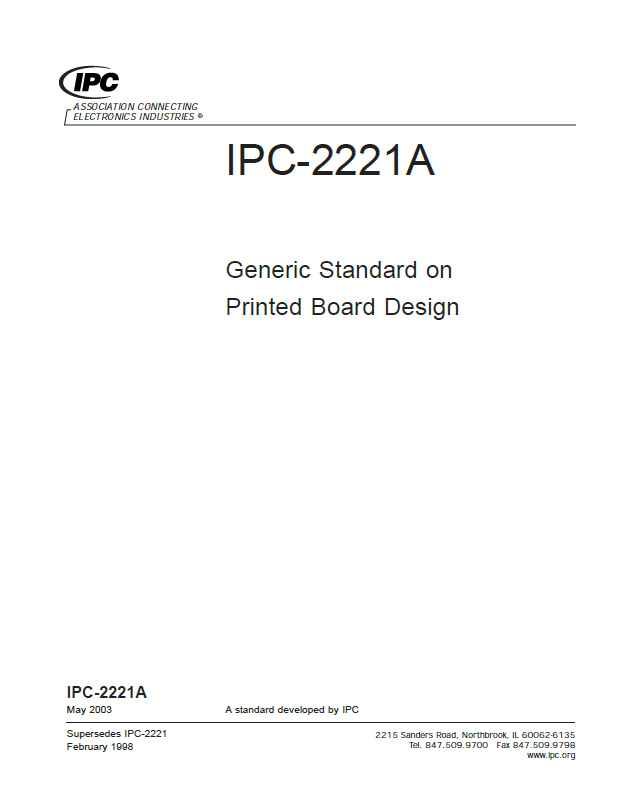

IPC-2221 - Revision A
Generic Standard on Printed Board Design
Format
Availability
Price and currency
Chinese Secure PDF
Immediate download
Non-printable
233.00 USD
Chinese Hardcopy
10-14 days
349.51 USD
English Secure PDF
Immediate download
Non-printable
233.00 USD
English Hardcopy
10-14 days
349.51 USD
German Secure PDF
Immediate download
Non-printable
329.00 USD
German Hardcopy
10-14 days
493.51 USD
View table of Contents
| Standard Number: | IPC-2221 - Revision A |
| DOD Adopted: | No |
| ANSI Approved: | No |
| Revision: | A |
| Released: | 01.05.2003 |
| Pages (English): | 124 |
| Pages (Chinese): | 128 |
| Pages (German): | 112 |
DESCRIPTION
Superseded by IPC-2221-Revision B
IPC-2221A is the foundation design standard for all documents in the IPC-2220 series. It establishes the generic requirements for the design of printed boards and other forms of component mounting or interconnecting structures, whether single-sided, double-sided or multilayer. Among the many updates to Revision A are new criteria for surface plating, internal and external foil thicknesses, component placement and hole tolerances. Expanded coverage is provided for material properties, dimensioning and tolerancing rules, and via structures as well as updated coupon designs for quality assurance. 112 pages. Released May 2003.
