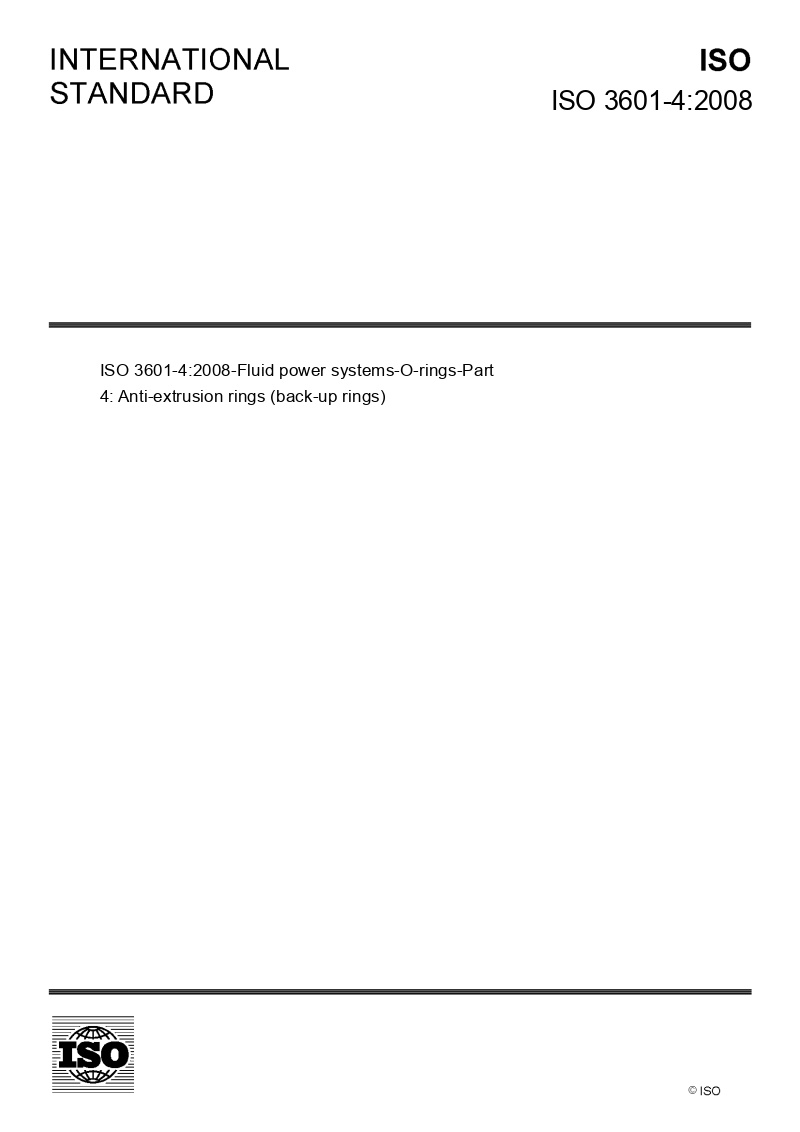

ISO 3601-4:2008 - Fluid power systems — O-rings — Part 4: Anti-extrusion rings (back-up rings)
Format
Availability
Price and currency
English PDF
Immediate download
Printable
89.39 USD
English Hardcopy
in stock
89.39 USD
| Standard´s number: | ISO 3601-4:2008 |
| Edition: | 1 |
| Released: | 2008-05-27 |
| Pages (English): | 11 |
DESCRIPTION
ISO 3601-4:2008
ISO 3601-4:2008 specifies dimensions and tolerances for five types of anti-extrusion rings, which are also known as back-up rings:
- spiral type (T1);
- angle cut type (T2);
- solid type (T3);
- angle cut concave type (T4);
- solid concave type (T5).
These anti-extrusion rings are for use with selected O-ring sizes as specified in ISO 3601-1 and the relevant housing dimensions specified in ISO 3601-2.
