ISO 5290:2001

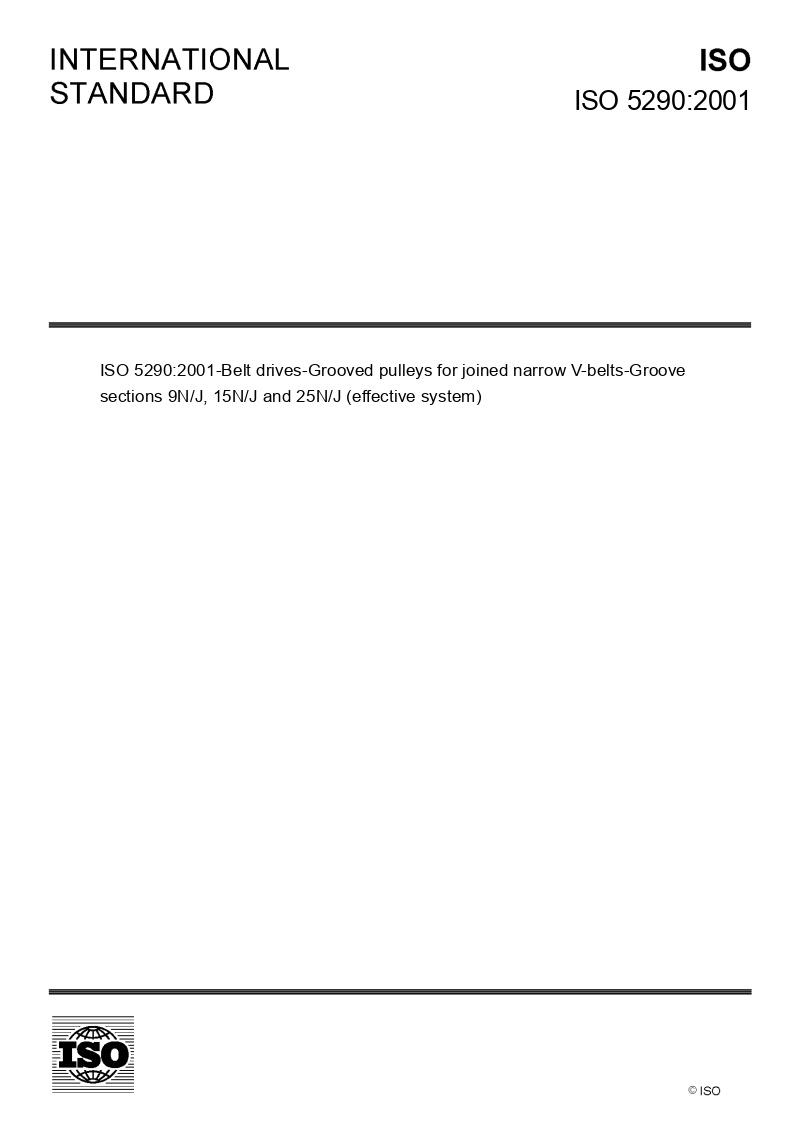

ISO 5290:2001 - Belt drives — Grooved pulleys for joined narrow V-belts — Groove sections 9N/J, 15N/J and 25N/J (effective system)
Format
Availability
Price and currency
English PDF
Immediate download
Printable
85.13 USD
English Hardcopy
In stock
85.13 USD
French PDF
Immediate download
Printable
85.13 USD
French Hardcopy
In stock
85.13 USD
| Standard´s number: | ISO 5290:2001 |
| Edition: | 4 |
| Released: | 2001-09-06 |
| Pages (English): | 10 |
| Pages (French): | 11 |
DESCRIPTION
ISO 5290:2001
This International Standard specifies the principal characteristics of grooved pulleys (for groove sections 9N/J,
15N/J and 25N/J) intended to take both single and joined narrow V-belts for industrial power transmission drives.
Some background information on the series of effective diameters is given in annex A.
NOTE The effective width of a groove is regarded as the basic dimension of standardization in the effective system for
grooves and for the corresponding narrow V-belts considered as a whole.
