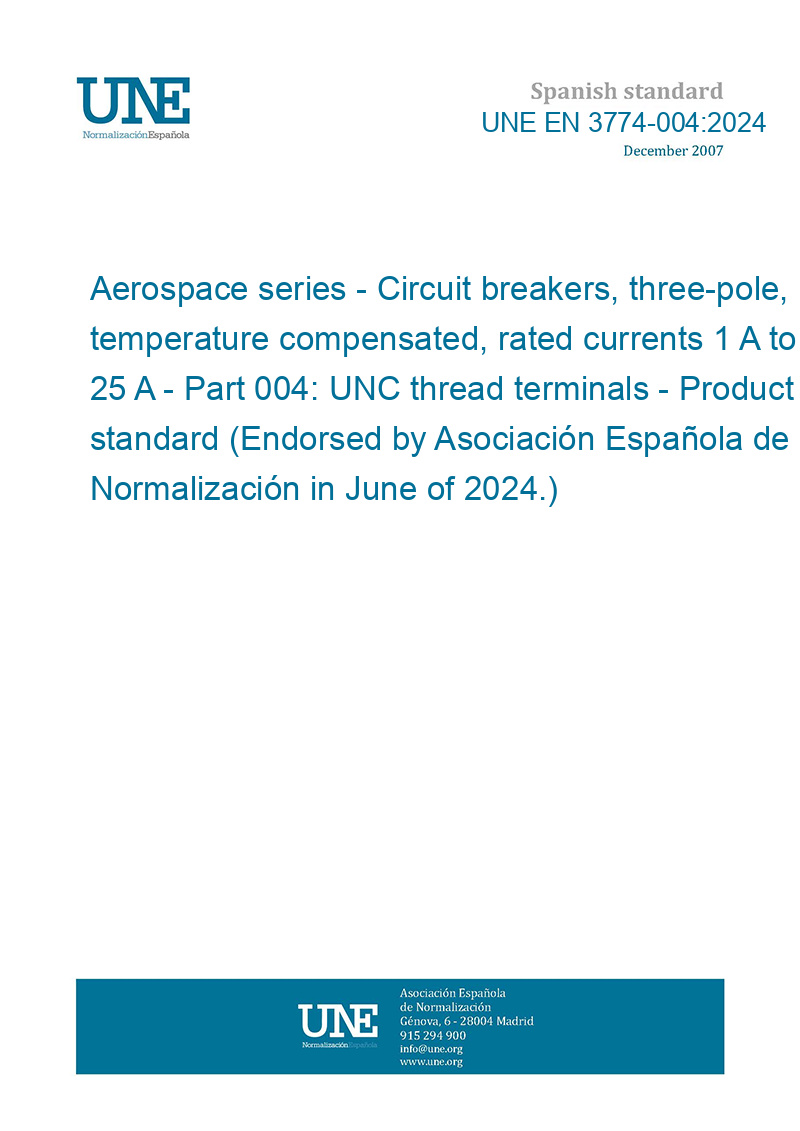

UNE EN 3774-004:2024
Aerospace series - Circuit breakers, three-pole, temperature compensated, rated currents 1 A to 25 A - Part 004: UNC thread terminals - Product standard (Endorsed by Asociación Española de Normalización in June of 2024.)
Material aeroespacial. Disyuntores tripolares de temperatura condensada, con corrientes nominales de 1 A a 25 A. Parte 004: Terminales roscados UNC. Norma de producto. (Ratificada por la Asociación Española de Normalización en junio de 2024.)
Format
Availability
Price and currency
English PDF
Immediate download
Printable
72.47 USD
English Hardcopy
In stock
72.47 USD
| Standard number: | UNE EN 3774-004:2024 |
| Pages: | 14 |
| Released: | 2024-06-01 |
| Status: | Standard |
DESCRIPTION
UNE EN 3774-004:2024
This document specifies the characteristics of three-pole circuit breakers, temperature compensated with a rated current from 1 A to 25 A, used in aircraft on-board circuits at a temperature between "55 °C and 125 °C for ratings d" 15 A and "55 °C to 90 °C for ratings > 15 A and at an altitude of 22 000 m max. These circuit breakers are operated by a push-pull type single pushbutton (actuator), with delayed action trip-free tripping. They will continue to function up to the short-circuit current.
