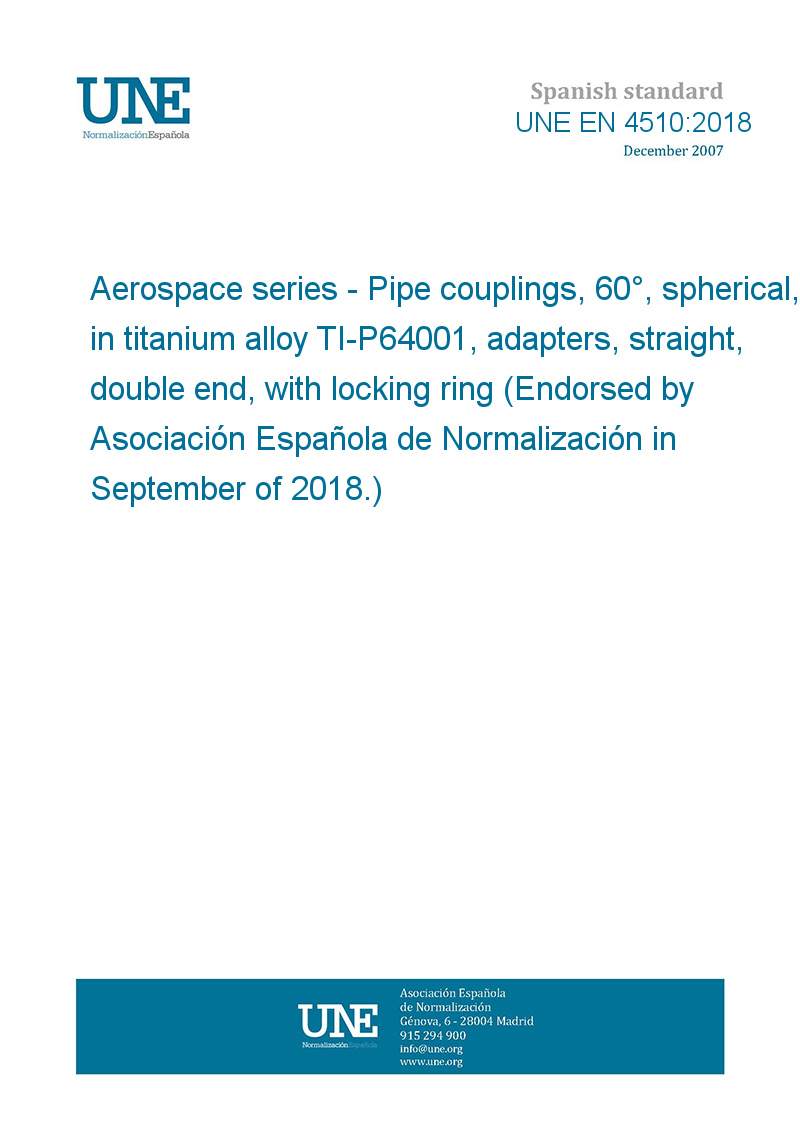

UNE EN 4510:2018
Aerospace series - Pipe couplings, 60°, spherical, in titanium alloy TI-P64001, adapters, straight, double end, with locking ring (Endorsed by Asociación Española de Normalización in September of 2018.)
Material aeroespacial. Tubos de conexión esféricos, 60°, en aleaciones de titanio TI-P64001, adaptadores, rectos, extremo doble, con autoenclavamiento. (Ratificada por la Asociación Española de Normalización en septiembre de 2018.)
| Standard number: | UNE EN 4510:2018 |
| Pages: | 13 |
| Released: | 2018-09-01 |
| Status: | Standard |
UNE EN 4510:2018
This standard specifies the characteristics of the pipe coupling adapter, 60° spherical sealing face manufactured in titanium alloy with locking ring, for installing in a boss for aerospace applications. These adapters shall be installed into port connections manufactured in accordance with EN 2602 using ISO 3601-1 sealing O-rings selected sizes. O-ring material depends on the system fluid and operation conditions. The installation shall be performed in accordance with EN 2608. Nominal working pressure: up to 28000 kPa. Temperature range: limited by elastomeric sealing ring, "54 °C to +135 °C
