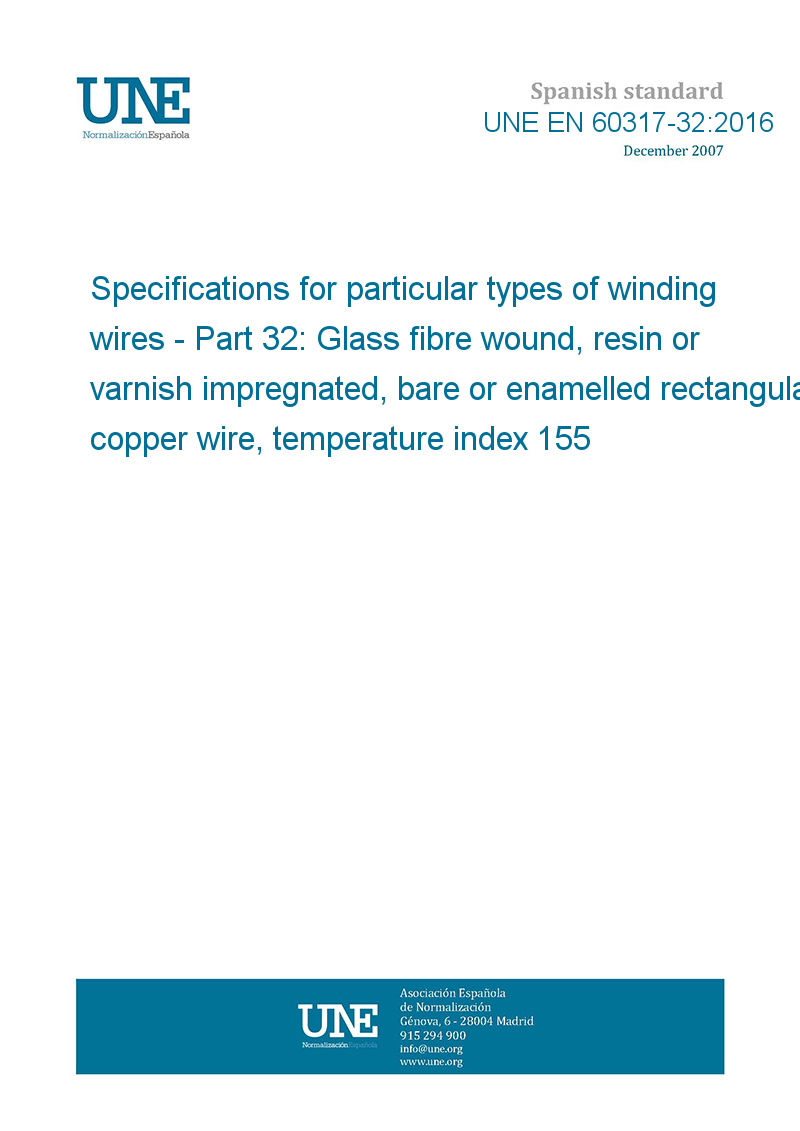

UNE EN 60317-32:2016
Specifications for particular types of winding wires - Part 32: Glass fibre wound, resin or varnish impregnated, bare or enamelled rectangular copper wire, temperature index 155
Especificaciones para tipos particulares de hilos para bobinas electromagnéticas. Parte 32: Hilo de cobre de sección rectangular, desnudo o esmaltado, recubierto con fibra de vidrio impregnada con barniz o resina, índice de temperatura 155.
| Standard number: | UNE EN 60317-32:2016 |
| Pages: | 17 |
| Released: | 2016-09-28 |
| Status: | Standard |
| Pages (Spanish): | 14 |
UNE EN 60317-32:2016
This part of IEC 60317 specifies the requirements of glass fibre wound, impregnated, bare or enamelled rectangular copper winding wire, temperature index 155. NOTE For this type of wire, the heat shock test is inappropriate and therefore a heat shock temperature cannot be established. Consequently, a class based on the requirements for temperature index and heat shock temperature cannot be specified. The range of nominal conductor dimensions covered by this standard is: width: min. 2,0 mm max. 16,0 mm; thickness: min. 0,80 mm max. 5,60 mm. The specified combinations of width and thickness as well as the specified width/thickness ratio are according to IEC 60317-0-4.
