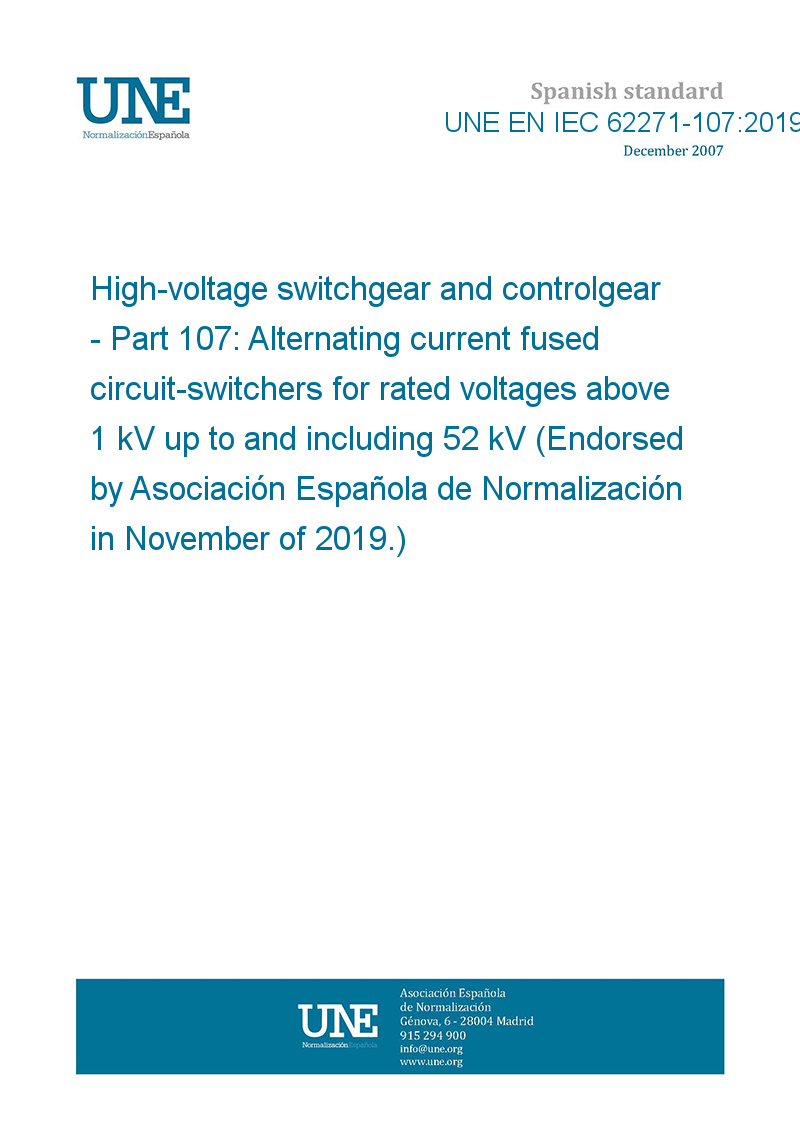

>UNE standards>UNE EN IEC 62271-107:2019 - High-voltage switchgear and controlgear - Part 107: Alternating current fused circuit-switchers for rated voltages above 1 kV up to and including 52 kV (Endorsed by Asociación Española de Normalización in November of 2019.)
in stockReleased: 2019-11-01
UNE EN IEC 62271-107:2019 - High-voltage switchgear and controlgear - Part 107: Alternating current fused circuit-switchers for rated voltages above 1 kV up to and including 52 kV (Endorsed by Asociación Española de Normalización in November of 2019.)

UNE EN IEC 62271-107:2019

High-voltage switchgear and controlgear - Part 107: Alternating current fused circuit-switchers for rated voltages above 1 kV up to and including 52 kV (Endorsed by Asociación Española de Normalización in November of 2019.)

Aparamenta de alta tensión. Parte 107: Interruptores de altas prestaciones (IAP) con fusibles, de corriente alterna para tensiones asignadas superiores a 1 kV e inferiores o iguales a 52 kV. (Ratificada por la Asociación Española de Normalización en noviembre de 2019.)

Format
Availability
Price and currency
English PDF
Immediate download
Printable
142.35 USD
English Hardcopy
In stock
142.35 USD
Standard number:UNE EN IEC 62271-107:2019
Pages:63
Released:2019-11-01
Status:Standard
DESCRIPTION

UNE EN IEC 62271-107:2019

This part of IEC 62271 applies to three-pole-operated fused circuit-switchers designed with rated voltages above 1 kV up to and including 52 kV for use on three-phase alternating current systems of either 50 Hz or 60 Hz. They may be designed either as stand-alone devices, or be embedded in some switchgear and controlgear assembly. They are intended to be used for circuits or applications requiring only a normal mechanical and electrical endurance capability. Such applications cover protection of HV/LV transformers for instance, but exclude distribution lines or cables, as well as motor circuits and capacitor bank circuits. Short-circuit conditions with low currents, up to the fused circuit-switcher rated take-over current, are dealt with by supplementary devices (strikers, relays, etc.), properly arranged, tripping the circuit-switcher. Current-limiting fuses are incorporated in order to ensure that the short-circuit breaking capacity of the device is above that of the circuit-switcher alone. NOTE 1 In this standard the term "fuse" is used to designate either the fuse or the fuse-link where the general meaning of the text does not result in ambiguity. NOTE 2 Other circuit-switchers exist; see reference [1]1. Devices that require a dependent manual operation are not covered by this standard.
