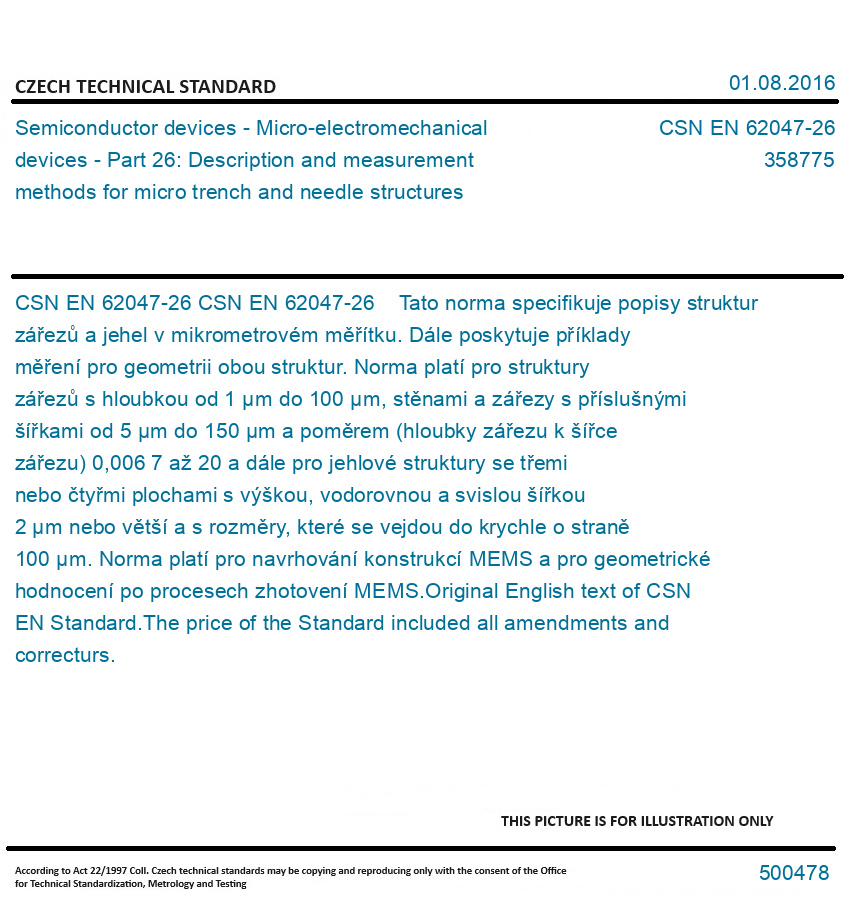

CSN EN 62047-26 - Semiconductor devices - Micro-electromechanical devices - Part 26: Description and measurement methods for micro trench and needle structures

CSN EN 62047-26

Semiconductor devices - Micro-electromechanical devices - Part 26: Description and measurement methods for micro trench and needle structures

Format
Availability
Price and currency
English Hardcopy
In stock
80.00 USD
Category:358775
Released:2016
Number of Standard:CSN EN 62047-26
DESCRIPTION

EN 62047-26


EN 62047-26 Semiconductor devices - Micro-electromechanical devices - Part 26: Description and measurement methods for micro trench and needle structures - IEC 62047-26:2016 specifies descriptions of trench structure and needle structure in a micrometer scale. In addition, it provides examples of measurement for the geometry of both structures. For trench structures, this standard applies to structures with a depth of 1 µm to 100 µm; walls and trenches with respective widths of 5 µm to 150 µm; and aspect ratio of 0,006 7 to 20. For needle structures, the standard applies to structures with three or four faces with a height, horizontal width and vertical width of 2 µm or larger, and with dimensions that fit inside a cube with sides of 100 µm. This standard is applicable to the structural design of MEMS and geometrical evaluation after MEMS processes.

Original English text of CSN EN Standard.
The price of the Standard included all amendments and correcturs.
