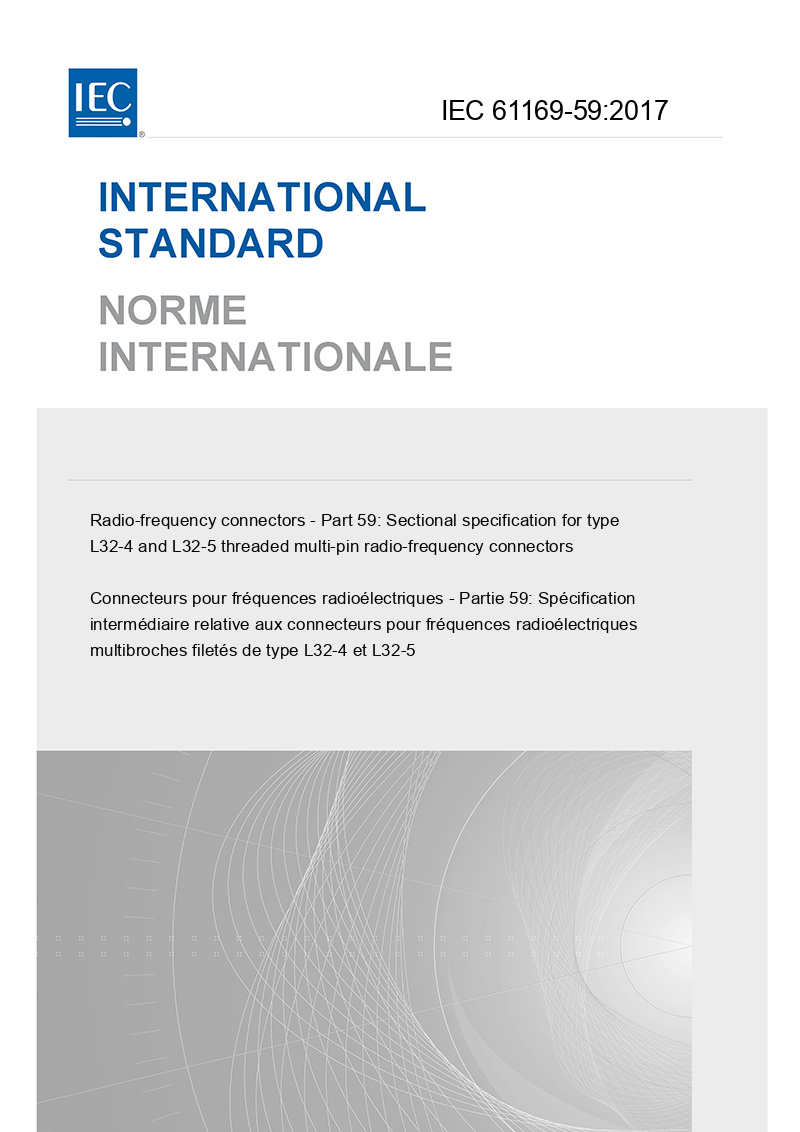

Radio-frequency connectors - Part 59: Sectional specification for type L32-4 and L32-5 threaded multi-pin radio-frequency connectors
Connecteurs pour fréquences radioélectriques - Partie 59: Spécification intermédiaire relative aux connecteurs pour fréquences radioélectriques multibroches filetés de type L32-4 et L32-5
|Standard number:||IEC 61169-59:2017|
IEC 61169-59:2017, which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for type L32-4 and L32-5 threaded multi-pin radio frequency connectors with anti mismating mechanism, 50 Ω nominal impedance. The operating frequency of each channel is up to 4 GHz. These connectors have been widely used in mobile communication system like TD-SCDMA and TD-LTE, and can also be used in some similar equipment. It also prescribes mating face dimensions for general connectors-grade 2, gauging information and tests selected from IEC 61169-1, applicable to all detail specifications relating to type L32-4 and L32-5 multi-pin connectors. This sectional specification provides information and rules for the preparation of detail specifications for type L32-4 and L32-5 multi-pin connectors together with the pro forma blank detail specification. This specification indicates the recommended performance characteristics to be considered when writing a detail specification and it covers test schedules and inspection requirements for assessment levels M and H.
